Bridgewater, MA - Beta Dyne is proud to
introduce the industry's first DC/DC converter to combine low noise and adjustability. Our new AD35 series of 35W
High-Voltage, Isolated Adjustable DC/DC Converters is aimed squarely at applications that require a versatile and
flexible power source.
Building on the success of the ARG3000 and SRAD20
adjustable DC/DC converters, the AD35 series consists of four models that accept input voltages of 12, 24, 48, and
110Vin and provide an adjustable output that can be configured as either positive (0Vdc to +200Vdc), negative (0Vdc
to -200Vdc) or dual (0Vdc to ±100Vdc). Furthering its flexibility, custom input and output voltage
combinations are available upon request.
The popularity of our Low-Noise 10W and 15W DC/DC Converters has
shown us that low output noise is a very desirable feature in the ever-increasing demand for better performance in
today's technology products. Based on two patents for power amplifier technology, the AD35 employs dual, low
dropout linear regulators that result in reduced output noise of less than 10mV. This combination of adjustability
and low noise performance makes the AD35 series perfect for military, aerospace, medical, and telecommunications
The AD35 series features up to 88% efficiency, 2:1 input voltage range, single and dual outputs, soft start,
short circuit protection, thermal protection, 750µA off state current, 500mV dropout linear regulators, dual
output tracking linear regulator, and six-sided shielding.

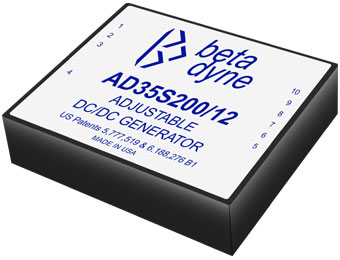

The converters come packaged in a 3.0 x 2.5 x
0.5-inch, coated 30-mil copper case that allows for operation without derating or a heatsink up to 71°C. The
standard operating temperature range is -40°C to +71°C; optional versions with an extended operating
temperature range of -55°C to +85°C are also available.
