1N914
www.vishay.com
Vishay Semiconductors
Rev. 1.8, 06-Dec-13
1
Document Number: 85622
For technical questions within your region:
DiodesAmericas@vishay.com
,
DiodesAsia@vishay.com
,
DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000

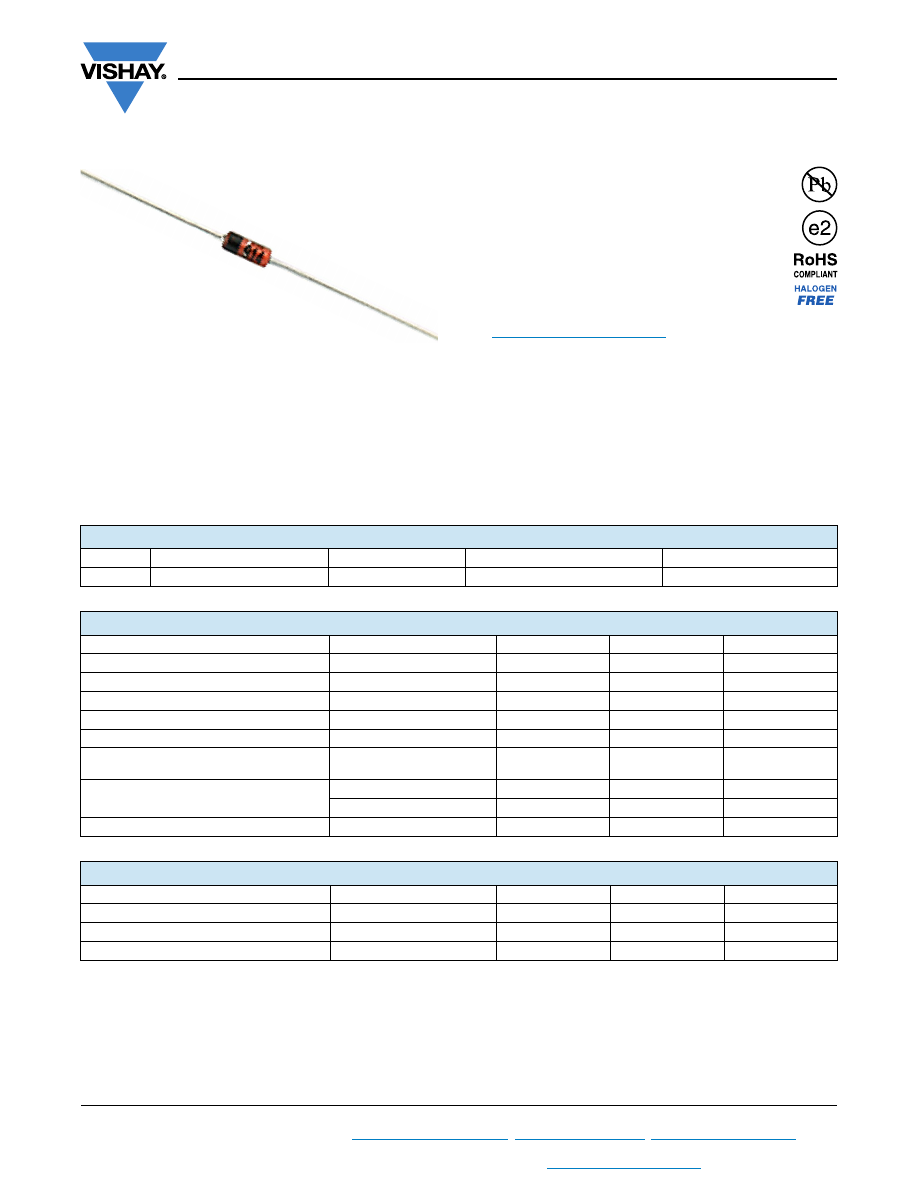

Small Signal Fast Switching Diodes
MECHANICAL DATA
Case: DO-35
Weight: approx. 125 mg
Cathode band color: black
Packaging codes/options:
TR/10K per 13" reel (52 mm tape), 50K/box
TAP/10K per ammopack (52 mm tape), 50K/box
FEATURES
Fast switching speed
High reliability
High conductance
For general purpose switching applications
AEC-Q101 qualified
Material categorization:
For definitions of compliance please see
www.vishay.com/doc?99912
PARTS TABLE
PART
ORDERING CODE
TYPE MARKING
INTERNAL CONSTRUCTION
REMARKS
1N914
1N914TR or 1N914TAP
1N914
Single diode
Tape and reel/ammopack
ABSOLUTE MAXIMUM RATINGS (T
amb
= 25 C, unless otherwise specified)
PARAMETER
TEST CONDITION
SYMBOL
VALUE
UNIT
Repetitive peak reverse voltage
V
RRM
100
V
Working peak reverse voltage
V
RWM
75
V
DC blocking voltage
V
R
75
V
RMS Reverse voltage
V
R(RMS)
53
V
Forward continuous current
I
F
300
mA
Average rectified current
Half wave rectification with
resistive load and f > 50 MHz
I
F(AV)
200
mA
Non repetitive peak forward surge current
t = 1 s
I
FSM
1
A
t = 1 μs
I
FSM
4
A
Power dissipation
l = 4 mm, T
L
= 25 C
P
tot
500
mW
THERMAL CHARACTERISTICS (T
amb
= 25 C, unless otherwise specified)
PARAMETER
TEST CONDITION
SYMBOL
VALUE
UNIT
Thermal resistance junction to ambient air
l = 4 mm, T
L
= constant
R
thJA
300
K/W
Junction temperature
T
j
+ 175
C
Storage temperature range
T
stg
- 65 to + 175
C
1N914
www.vishay.com
Vishay Semiconductors
Rev. 1.8, 06-Dec-13
2
Document Number: 85622
For technical questions within your region:
DiodesAmericas@vishay.com
,
DiodesAsia@vishay.com
,
DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TYPICAL CHARACTERISTICS (T
amb
= 25 C, unless otherwise specified)

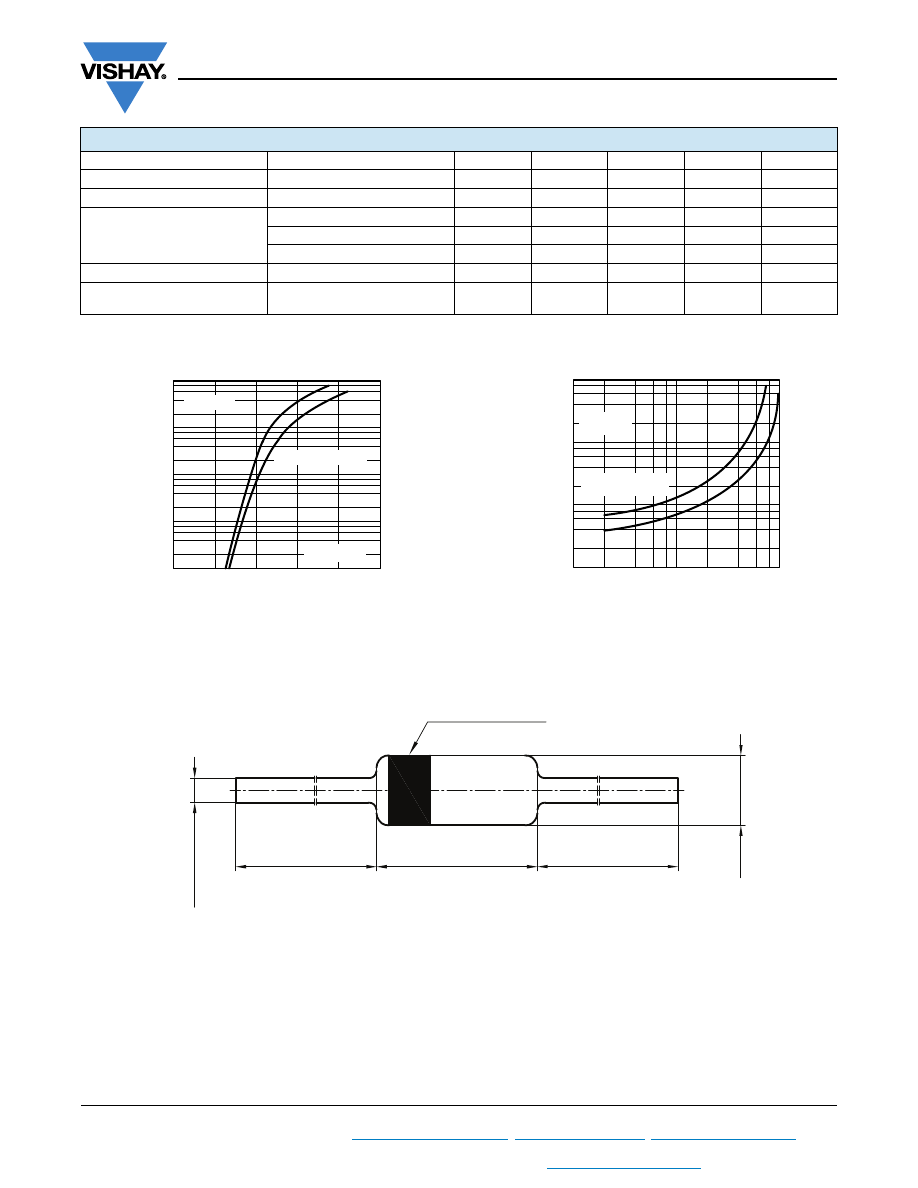

Fig. 1 - Forward Current vs. Forward Voltage
Fig. 2 - Reverse Current vs. Reverse Voltage
PACKAGE DIMENSIONS in millimeters (inches): DO-35
ELECTRICAL CHARACTERISTICS (T
amb
= 25 C, unless otherwise specified)
PARAMETER
TEST CONDITION
SYMBOL
MIN.
TYP.
MAX.
UNIT
Forward voltage
I
F
= 10 mA
V
F
1
V
Breakdown voltage
I
R
= 100 μA
V
(BR)
100
V
Peak reverse current
V
R
= 75 V
I
R
5
μA
V
R
= 20 V, T
j
= 150 C
I
R
50
μA
V
R
= 20 V
I
R
25
nA
Diode capacitance
V
R
= 0, f = 1 MHz
C
D
4
pF
Reverse recovery time
I
F
= 10 mA, i
R
= 1 mA,
V
R
= 6 V, R
L
= 100
Ω
t
rr
4
ns
0 0.4 0.8 1.2 1.6
0.1
1
10
100
1000
I
- For
w
ard C
u
rrent (mA)
F
V
F
- Forward Voltage (V)
2.0
94 9170_1
Scattering Limit
T = 25 C
j
1N914
1
10
100
1000
I
R
- Re
v
erse C
u
rrent (nA)
V
R
- Reverse Voltage (V)
10
1 100
94 9098
T
j
= 25 C
Scattering Limit
94 9366
Rev. 6 - Date: 19. December 2011
Document no.: SB-V-3906.04-031(4)
26 min. [1.024]
3.9 max. [0.154]
26 min. [1.024]
Cathode Identification
1.
7
[
0
.0
6
7
]
1.
3
[
0
.0
5
0
]
3.1 min. [0.120]
Ø
0.
6 m
a
x.
[
0
.0
24]
Ø
0.
4 m
in.
[
0
.015]
Legal Disclaimer Notice
