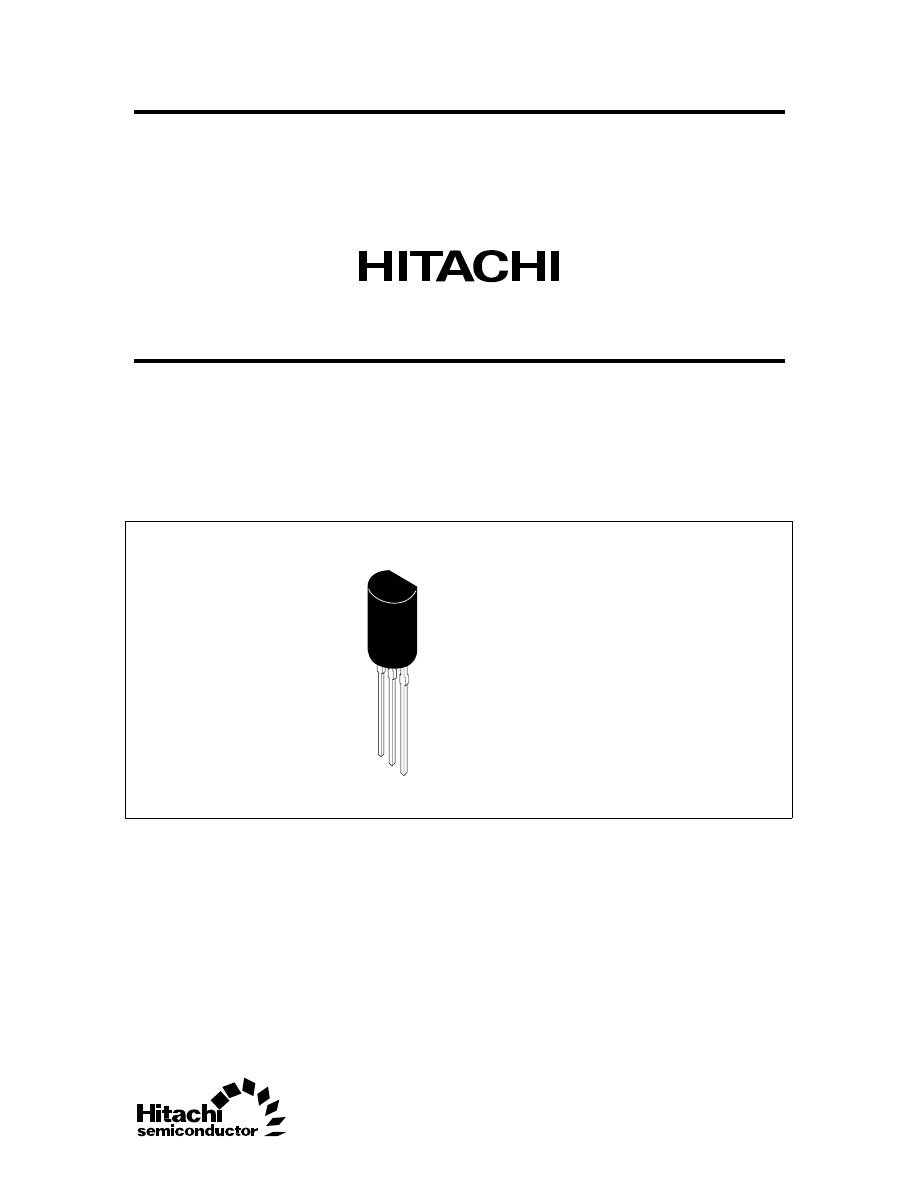

2SB715, 2SB716, 2SB716A

Silicon PNP Epitaxial

Application

•

Low frequency high voltage amplifier

•

Complementary pair with 2SD755, 2SD756 and 2SD756A

Outline

3

2

1

1. Emitter
2. Collector
3. Base

TO-92MOD

background image

2SB715, 2SB716, 2SB716A

2

Absolute Maximum Ratings (Ta = 25 °C)

Item

Symbol

2SB715

2SB716

2SB716A

Unit

Collector to base voltage

V

CBO

-100

-120

-140

V

Collector to emitter voltage

V

CEO

-100

-120

-140

V

Emitter to base voltage

V

EBO

-5

-5

-5

V

Collector current

I

C

-50

-50

-50

mA

Collector power dissipation

P

C

750

750

750

mW

Junction temperature

Tj

150

150

150

°

C

Storage temperature

Tstg

-55 to +150

-55 to +150

-55 to +150

°

C

Electrical Characteristics (Ta = 25 °C)

2SB715

2SB716

2SB716A

Item

Symbol Min

Typ

Max

Min

Typ

Max

Min

Typ

Max

Unit

Test conditions

Collector to base
breakdown voltage

V

(BR)CBO

-100 —

—

-120 —

—

-140 —

—

V

I

C

 = -10

΅

A, I

E

 = 0

Collector to emitter
breakdown voltage

V

(BR)CEO

-100 —

—

-120 —

—

-140 —

—

V

I

C

 = -1 mA,

R

BE

 =

•ˆž

Collector cutoff current

I

CBO

—

—

-0.5

—

—

—

—

—

—

΅

A

V

CB

 = -80 V, I

E

 = 0

—

—

—

—

—

-0.5

—

—

-0.5

΅

A

V

CB

 = -100 V, I

E

 = 0

DC current transfer ratio h

FE1

*

1

250

—

800

250

—

800

250

—

500

V

CE

 = -12 V,

I

C

 = -2 mA

h

FE2

125

—

—

125

—

—

125

—

—

V

CE

 = -12 V,

I

C

 = -10 mA

Base to emitter voltage

V

BE

—

—

-0.75 —

—

-0.75 —

—

-0.75 V

V

CE

 = -12 V,

I

C

 = -2 mA

Collector to emitter
saturation voltage

V

CE(sat)

—

—

-0.2

—

—

-0.2

—

—

-0.2

V

I

C

 = -10 mA,

I

B

 = -1 mA

Gain bandwidth product f

T

—

150

—

—

150

—

—

150

—

MHz V

CE

 = -12 V,

I

C

 = -5 mA

Collector output
capacitance

Cob

—

1.8

—

—

1.8

—

—

1.8

—

pF

V

CB

 = -25 V, I

E

 = 0,

f = 1 MHz

Note:

1. The 2SB715, 2SB716 and 2SB716A are grouped by h

FE1

 as follows.

D

E

2SB715, 2SB716 250 to 500

400 to 800

2SB716A

250 to 500

—

background image

2SB715, 2SB716, 2SB716A

3

0

50

100

150

Ambient Temperature  Ta  (

°

C)

Collector Power Dissipation  Pc  (mW)

Maximum Collector Dissipation Curve

750

500

250

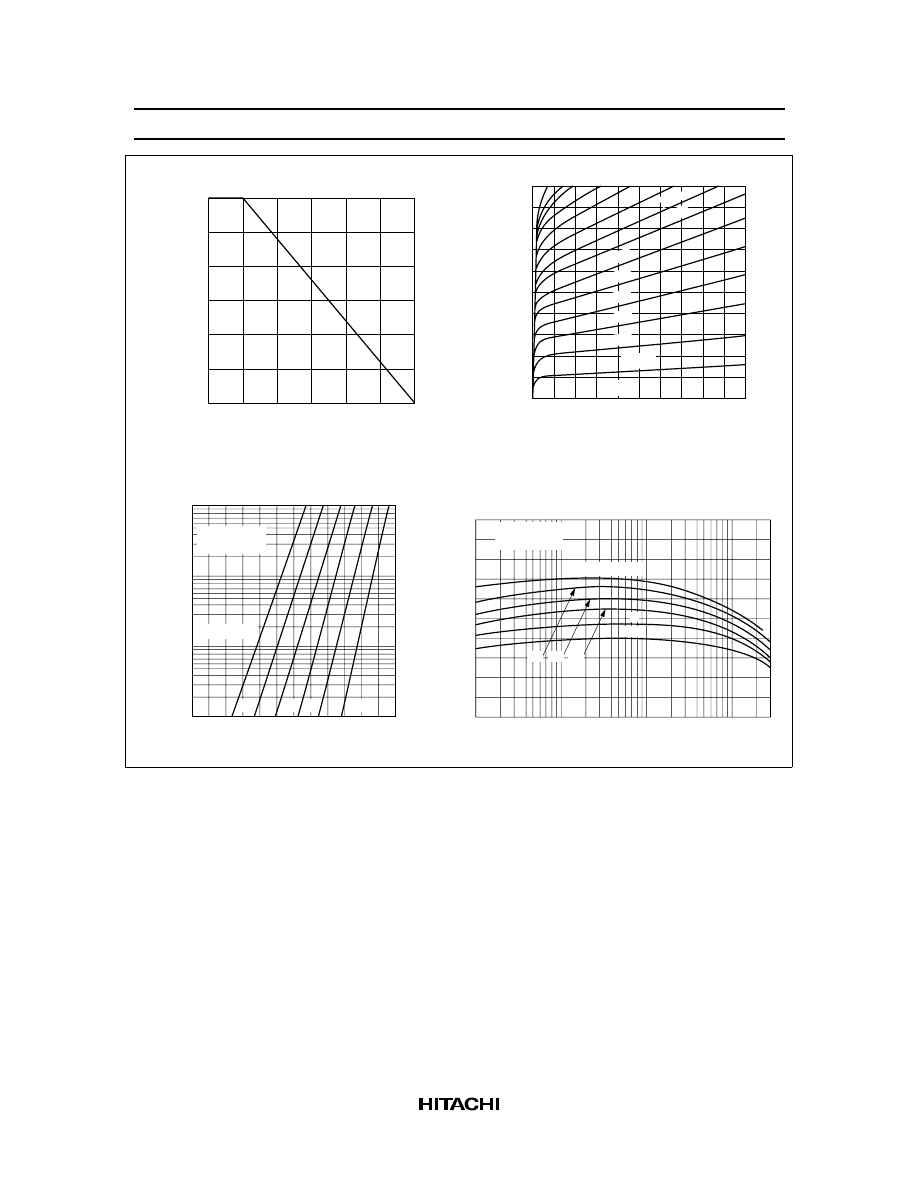

Typical Output Characteristics

Collector to Emitter Voltage  V

CE

  (V)

Collector Current  I

C

  (mA)

0

-10

-50

-20

-30

-40

-10

-8

-6

-4

-2

I

B

 = 0

-2

΅

A

-4

-6

-8

-10

-12

-14

-16

Typical Transfer Characteristics

Collector Current  I

C

  (mA)

-0.01

-0.03

-0.1

-0.3

-1.0

-3

-10

Base to Emitter Voltage  V

BE

  (V)

-0.2

-0.4

-0.6

-0.8

V

CE

 = -12 V

Pulse

Ta = 100

°

C

75 50 25

-25

0



DC Current Transfer Ratio vs.

Collector Current

Collector Current  I

C

  (mA)

-0.01 -0.03

-0.1

-0.3

-1.0

-3

-10

-30

0

200

400

600

800

1,000

DC Current Transfer Ratio  h

FE

Ta = 100

°

C

0

-25

V

CE

 = -12 V

Pulse

75 50 25

background image

2SB715, 2SB716, 2SB716A

4

Gain Bandwidth Product vs.

Collector Current

5

10

30

100

300

1,000

Collector Current  I

C

  (mA)

Gain Bandwidth Product  f

T

  (MHz)

-0.01 -0.03

-0.1

-0.3

-1.0

-3

-10

-30-50

V

CE

 = -12 V

Collector Output Capacitance vs.

Collector to Base Voltage

Collector Output Capacitance  C

ob

  (pF)

Collector to Base Voltage  V

CB

  (V)

0.5

1.0

2

5

10

20

50

-1

-3

-10

-30

-100

f = 1 MHz
I

E

 = 0

Area of Safe Operation

-1

-2

-5

-10

-20

-50

-100

Collector to Emitter Voltage  V

CE

  (V)

Collector Current  I

C

  (mA)

-5

-10 -20

-50 -100 -200

-500

Ta = 25

°

C

P

C

  = 750 mW

DC Operation

I

C



(max)

(-50 V, -15 mA)

2SB716

2SB716A

(-100 V, -7.5 mA)

(-120 V, -5 mA)

(-140 V, -4 mA)

2SB715

background image

0.60 Max

0.5

±

 0.1

4.8

±

 0.3

3.8

±

 0.3

8.0

±

 0.5

0.7

2.3 Max

10.1 Min

0.5

1.27

2.54

0.65

±

 0.1

0.75 Max

Hitachi Code
JEDEC
EIAJ
Weight (reference value)

TO-92 Mod
—
Conforms
0.35 g

Unit: mm
