PN2222A
— NPN General-Purpose Amplifier
© 2004 Fairchild Semiconductor Corporation
www.fairchildsemi.com
PN2222A Rev. 1.1.0
July 2014
PN2222A
NPN General-Purpose Amplifier
Features
• This device is for use as a medium power amplifier and
switch requiring collector currents up to 500mA.
Ordering Information
Absolute Maximum Ratings
(1), (2)
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera-
ble above the recommended operating conditions and stressing the parts to these levels is not recommended. In addi-
tion, extended exposure to stresses above the recommended operating conditions may affect device reliability. The
absolute maximum ratings are stress ratings only. Values are at T
A
= 25
°C unless otherwise noted.
Note:
1. These rating are based on a maximum junction temperature of 150
°C.
2. These are steady-state limits. Fairchild Semiconductor should be consulted on applications involving pulsed or
low-duty-cycle operation.
Part Number
Top Mark
Package
Packing Method
PN2222ABU
PN2222A
TO-92 3L
Bulk
PN2222ATA
PN2222A
TO-92 3L
Ammo
PN2222ATF
PN2222A
TO-92 3L
Tape and Reel
PN2222ATFR
PN2222A
TO-92 3L
Tape and Reel
Symbol
Parameter
Value
Unit
V
CEO
Collector-Emitter Voltage
40
V
V
CBO
Collector-Base Voltage
75
V
V
EBO
Emitter-Base Voltage
6.0
V
I
C
Collector Current
1.0
A
T
STG
Operating and Storage Junction Temperature Range
-55 to 150
°C
E B C
TO-92
PN2222A
— NPN General-Purpose Amplifier
© 2004 Fairchild Semiconductor Corporation
www.fairchildsemi.com
PN2222A Rev. 1.1.0
2
Thermal Characteristics
(3)
Values are at T
A
= 25
°C unless otherwise noted.
Note:
3. PCB size: FR-4, 76 mm x 114 mm x 1.57 mm (3.0 inch x 4.5 inch x 0.062 inch) with minimum land pattern size.
Symbol
Parameter
Max.
Unit
P
D
Total Device Dissipation
625
mW
Derate Above 25
°C
5.0
mW/
°C
R
ΘJC
Thermal Resistance, Junction to Case
83.3
°C/W
R
ΘJA
Thermal Resistance, Junction to Ambient
200
°C/W
PN2222A
— NPN General-Purpose Amplifier
© 2004 Fairchild Semiconductor Corporation
www.fairchildsemi.com
PN2222A Rev. 1.1.0
3
Electrical Characteristics
Values are at T
A
= 25 °C unless otherwise noted.
Note:
4. Pulse test: pulse width
≤ 300 μs, duty cycle ≤ 2.0%.
Symbol
Parameter
Conditions
Min.
Max.
Unit
Off Characteristics
BV
(BR)CEO
Collector-Emitter Breakdown
Voltage
(4)
I
C
= 10 mA, I
B
= 0
40
V
BV
(BR)CBO
Collector-Base Breakdown Voltage
I
C
= 10
μA, I
E
= 0
75
V
BV
(BR)EBO
Emitter-Base Breakdown Voltage
I
E
= 10
μA, I
C
= 0
6.0
V
I
CEX
Collector Cut-Off Current
V
CE
= 60 V, V
EB(off)
= 3.0 V
10
nA
I
CBO
Collector Cut-Off Current
V
CB
= 60 V, I
E
= 0
0.01
μA
V
CB
= 60 V, I
E
= 0, T
A
= 125
°C
10
I
EBO
Emitter Cut-Off Current
V
EB
= 3.0 V, I
C
= 0
10
nA
I
BL
Base Cut-Off Current
V
CE
= 60 V, V
EB(off)
= 3.0 V
20
nA
On Characteristics
h
FE
DC Current Gain
I
C
= 0.1 mA, V
CE
= 10 V
35
I
C
= 1.0 mA, V
CE
= 10 V
50
I
C
= 10 mA, V
CE
= 10 V
75
I
C
= 10 mA, V
CE
= 10 V,
T
A
= -55
°C
35
I
C
= 150 mA, V
CE
= 10 V
(4)
100
300
I
C
= 150 mA, V
CE
= 1 V
(4)
50
I
C
= 500 mA, V
CE
= 10 V
(4)
40
V
CE(sat)
Collector-Emitter Saturation Voltage
(4)
I
C
= 150 mA, I
B
= 15 mA
0.3
V
I
C
= 500 mA, I
B
= 50 mA
1.0
V
BE(sat)
Base-Emitter Saturation Voltage
(4)
I
C
= 150 mA, I
B
= 15 mA
0.6
1.2
V
I
C
= 500 mA, I
B
= 50 mA
2.0
Small Signal Characteristics
f
T
Current Gain Bandwidth Product
I
C
= 20 mA, V
CE
= 20 V,
f = 100 MHz
300
MHz
C
obo
Output Capacitance
V
CB
= 10 V, I
E
= 0, f = 1 MHz
8.0
pF
C
ibo
Input Capacitance
V
EB
= 0.5 V, I
C
= 0, f = 1 MHz
25
pF
rb’C
c
Collector Base Time Constant
I
C
= 20 mA, V
CB
= 20 V,
f = 31.8 MHz
150
pS
NF
Noise Figure
I
C
= 100
μA, V
CE
= 10 V,
R
S
= 1.0 k
Ω, f = 1.0 kHz
4.0
dB
Re(h
ie
)
Real Part of Common-Emitter
High Frequency Input Impedance
I
C
= 20 mA, V
CE
= 20 V,
f = 300 MHz
60
Ω
Switching Characteristics
t
d
Delay Time
V
CC
= 30 V, V
EB(off)
= 0.5 V,
I
C
= 150 mA, I
B1
= 15 mA
10
ns
t
r
Rise Time
25
ns
t
s
Storage Time
V
CC
= 30 V, I
C
= 150 mA,
I
B1
= I
B2
= 15 mA
225
ns
t
f
Fall Time
60
ns
PN2222A
— NPN General-Purpose Amplifier
© 2004 Fairchild Semiconductor Corporation
www.fairchildsemi.com
PN2222A Rev. 1.1.0
4
Physical Dimensions

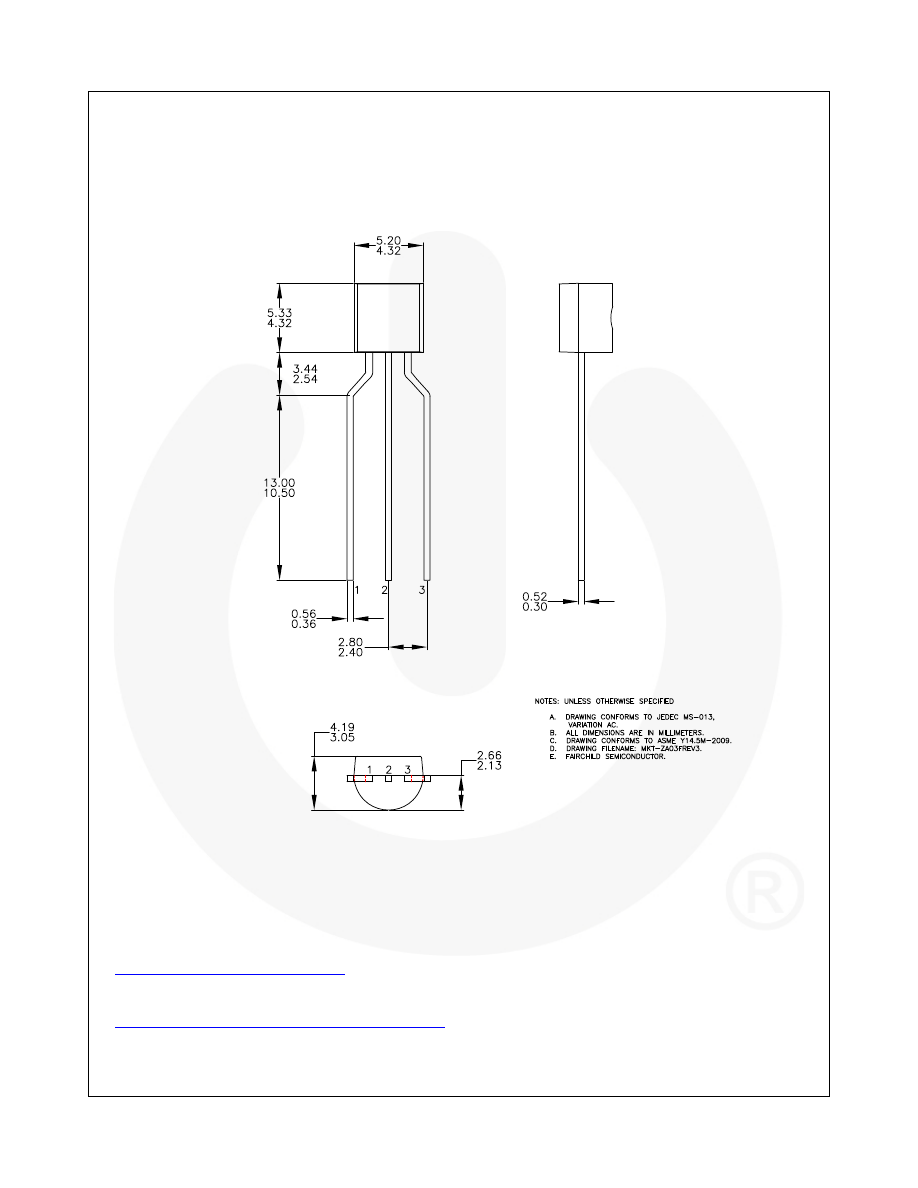

Figure 1. 3-LEAD, TO92, JEDEC TO-92 COMPLIANT STRAIGHT LEAD CONFIGURATION (OLD TO92AM3)
Package drawings are provided as a service to customers considering Fairchild components. Drawings may change in any manner
without notice. Please note the revision and/or date on the drawing and contact a Fairchild Semiconductor representative to verify or
obtain the most recent revision. Package specifications do not expand the terms of Fairchild’s worldwide terms and conditions, specifically the
warranty therein, which covers Fairchild products.
Always visit Fairchild Semiconductor’s online packaging area for the most recent package drawings:
http://www.fairchildsemi.com/dwg/ZA/ZA03D.pdf
.
For current tape and reel specifications, visit Fairchild Semiconductor’s online packaging area:
http://www.fairchildsemi.com/packing_dwg/PKG-ZA03D_BK.pdf
.
D
TO-92 (Bulk)
PN2222A
— NPN General-Purpose Amplifier
© 2004 Fairchild Semiconductor Corporation
www.fairchildsemi.com
PN2222A Rev. 1.1.0
5
Physical Dimensions
(Continued)

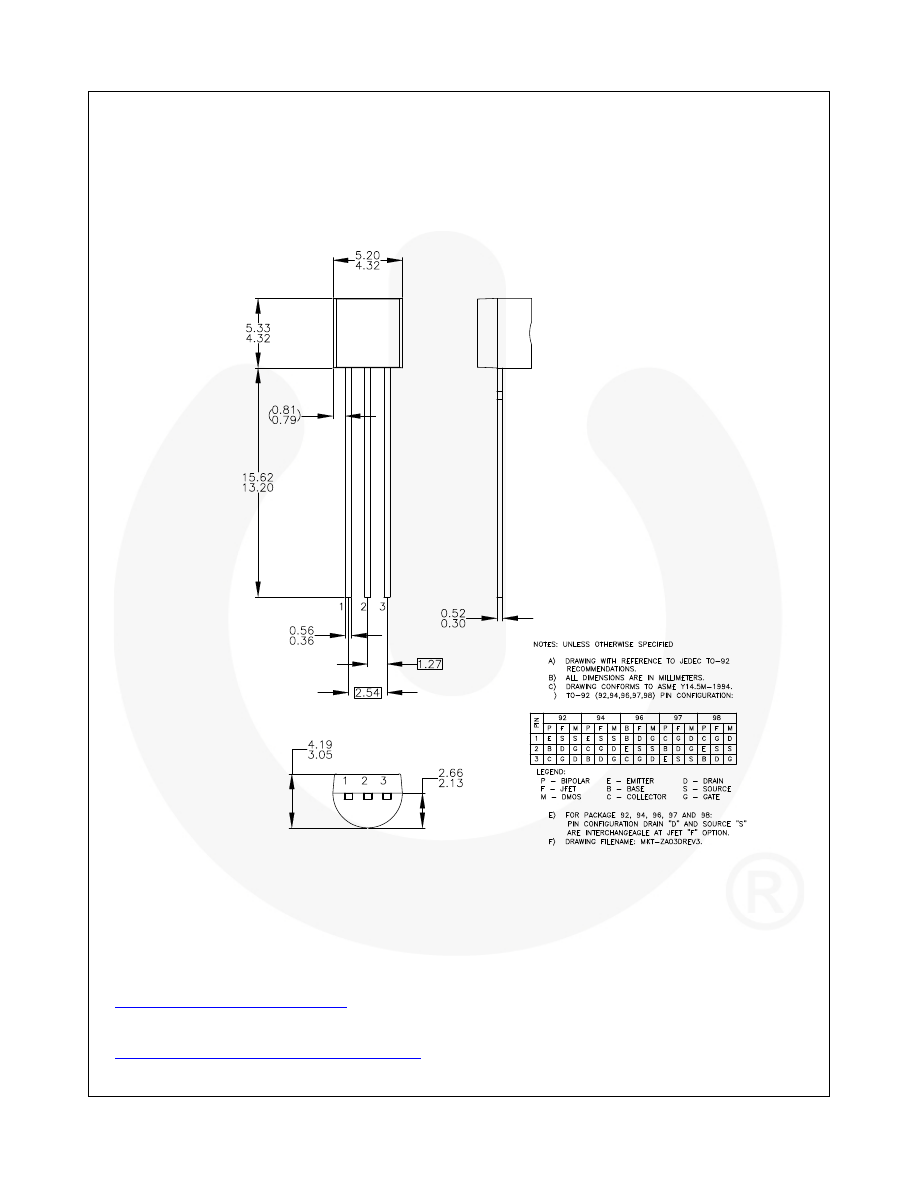

Figure 2. 3-LEAD, TO-92, MOLDED 0.200 IN LINE SPACING LEAD FORM (J61Z OPTION)
Package drawings are provided as a service to customers considering Fairchild components. Drawings may change in any manner
without notice. Please note the revision and/or date on the drawing and contact a Fairchild Semiconductor representative to verify or
obtain the most recent revision. Package specifications do not expand the terms of Fairchild’s worldwide terms and conditions, specifically the
warranty therein, which covers Fairchild products.
Always visit Fairchild Semiconductor’s online packaging area for the most recent package drawings:
http://www.fairchildsemi.com/dwg/ZA/ZA03F.pdf
.
For current tape and reel specifications, visit Fairchild Semiconductor’s online packaging area:
http://www.fairchildsemi.com/packing_dwg/PKG-ZA03F_BK.pdf
.
TO-92 (Ammo, Tape and Reel)
© Fairchild Semiconductor Corporation
www.fairchildsemi.com
