2N2905

Low Power Bipolar Transistors

Page 1

07/04/06  V1.0

Features:

•• PNP Silicon Planar switching Transistors.
•• General Purpose Transistor.

TO-39 Metal Can Package

Pin Configuration
1. Emitter
2. Base
3. Collector

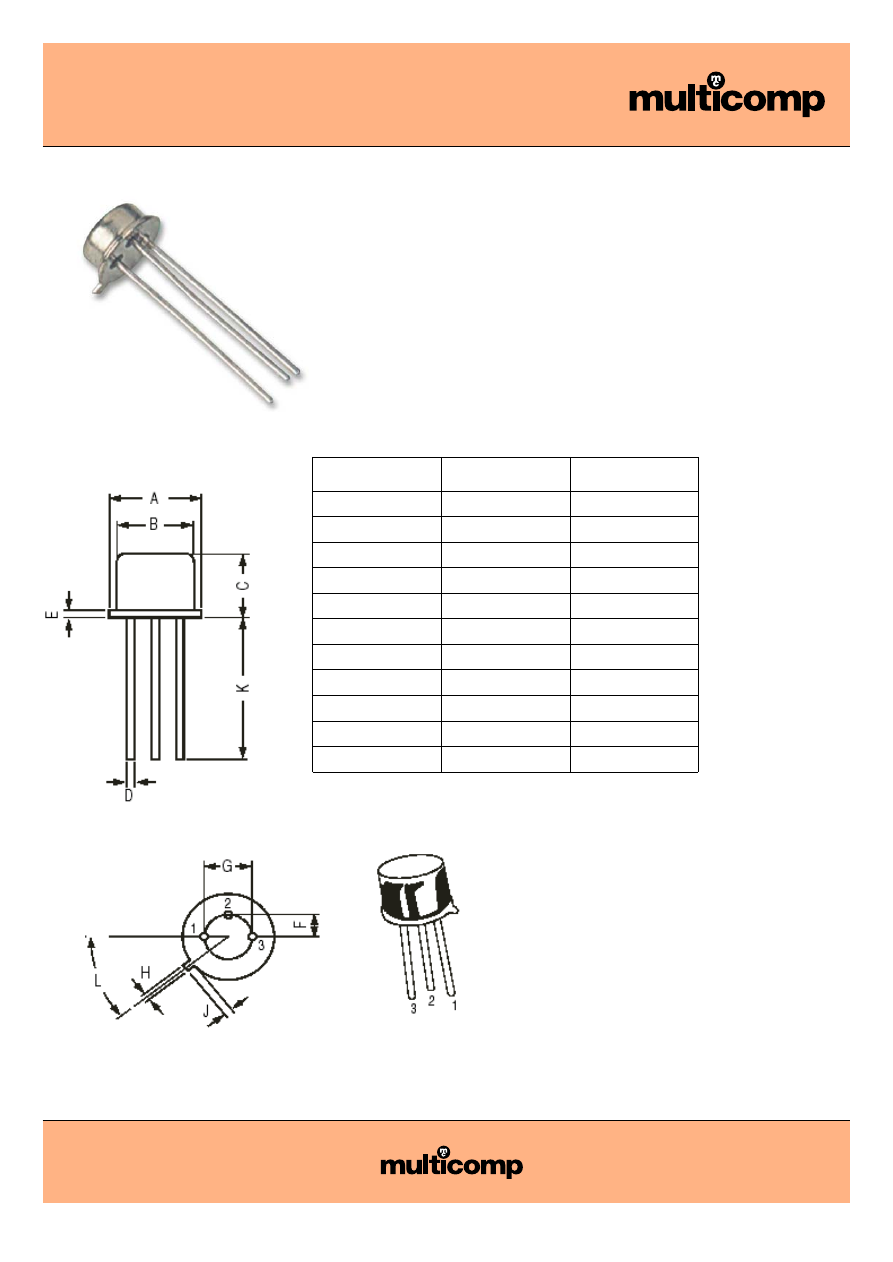

Dimensions : Millimetres

Dimensions

Minimum

Maximum

A

8.50

9.39

B

7.74

8.50

C

6.09

6.60

D

0.40

0.53

E

-

0.88

F

2.41

2.66

G

4.82

5.33

H

0.71

0.86

J

0.73

1.02

K

12.70

-

L

42 °

48 °

background image

2N2905

Low Power Bipolar Transistors

Page 2

07/04/06  V1.0

Absolute Maximum Ratings

Description

Symbol

Value

Unit

Collector Emitter Voltage

V

CEO

40

V

Collector Base Voltage

V

CBO

60

Emitter Base Voltage

V

EBO

5

Collector Current Continuous

I

C

600

mA

Power Dissipation at T

a

= 25 °C

Derate Above 25 °C

P

D

600

3.43

mW

mW/ °C

Power Dissipation at T

C

= 25 °C

Derate Above 25 °C

3.0

17.2

W

mW/ °C

Operating and Storage Junction
Temperature Range

T

j

, T

stg

-65 to +200

°C

Electrical Characteristics (T

a

= 25 °C unless specified otherwise)

Description

Symbol

Test Condition

Minimum

Maximum

Unit

Collector Emitter Voltage

*V

CEO

I

C

= 10mA, I

B

= 0

40

-

V

Collector Base Voltage

V

CBO

I

C

= 10

µA, I

E

= 0

60

-

Emmiter Base Voltage

V

EBO

I

E

= 10

µA, I

C

= 0

5

-

Collector Cut off Current

I

CEX

V

CE

= 30V, V

BE

= 0.5V

-

50

nA

Collector Cut off Current

I

CBO

V

CB

= 50V, I

E

= 0

-

20

nA

V

CB

= 50V, I

E

= 0,

T

a

= 150 °C

-

µA

Base Current

I

B

V

CE

= 30V, V

BE

= 0.5V

-

50

nA

DC Current Gain

h

FE

I

C

= 0.1mA, V

CE

= 10V

I

C

= 1mA, V

CE

= 10V

I

C

= 10mA, V

CE

= 10V

*I

C

= 150mA, V

CE

= 10V

*I

C

= 500mA, V

CE

= 10V

-

>35
>50
>75

100 - 300

>30

-

Small Signal Characteristics

Collector Emitter Saturation Voltage

*V

CE (sat)

I

C

= 150mA, I

B

= 15mA

I

C

= 500mA, I

B

= 50mA

-

0.4
1.6

V

Base Emitter Saturation Voltage

*V

BE (sat)

I

C

= 150mA, I

B

= 15mA

I

C

= 500mA, I

B

= 50mA

-

1.3
2.6

Transition Frequency

**f

T

I

C

= 50mA, V

CE

= 20V

f = 100MHz

200

-

MHz

Output Capacitance

C

obo

V

CB

= 10V, I

E

= 0

f = 100KHz

-

8.0

pF

Input Capacitance

C

ibo

V

BE

= 2V, I

C

= 0

f = 100KHz

-

30

*Pulse Test: Pulse Width

≤300 µs, Duty Cycle ≤2%.

**f

T

is defined as the frequency at which /h

FE

/ extrapolates to unity.

background image

2N2905

Low Power Bipolar Transistors

Page 3

07/04/06  V1.0

Electrical Characteristics (T

a

= 25 °C unless specified otherwise)

Description

Symbol

Test Condition

Minimum

Maximum

Unit

Switching Time

Delay Time

t

d

I

C

= 150mA, I

B1

= 15mA, V

CC

= 30V

-

10

nS

Rise Time

t

r

-

40

Turn on Time

t

on

-

45

Storage Time

t

S

I

C

= 150mA, I

B1

= I

B2

= 15mA,

V

CC

= 6V

-

80

Fall Time

t

f

-

30

Turn off Time

t

off

-

100

Package

Part Number

TO-39

2N2905

Part Number Table

background image
