 Semiconductor Components Industries, LLC, 2001

February, 2001 - Rev. 1

1

Publication Order Number:

BC212/D

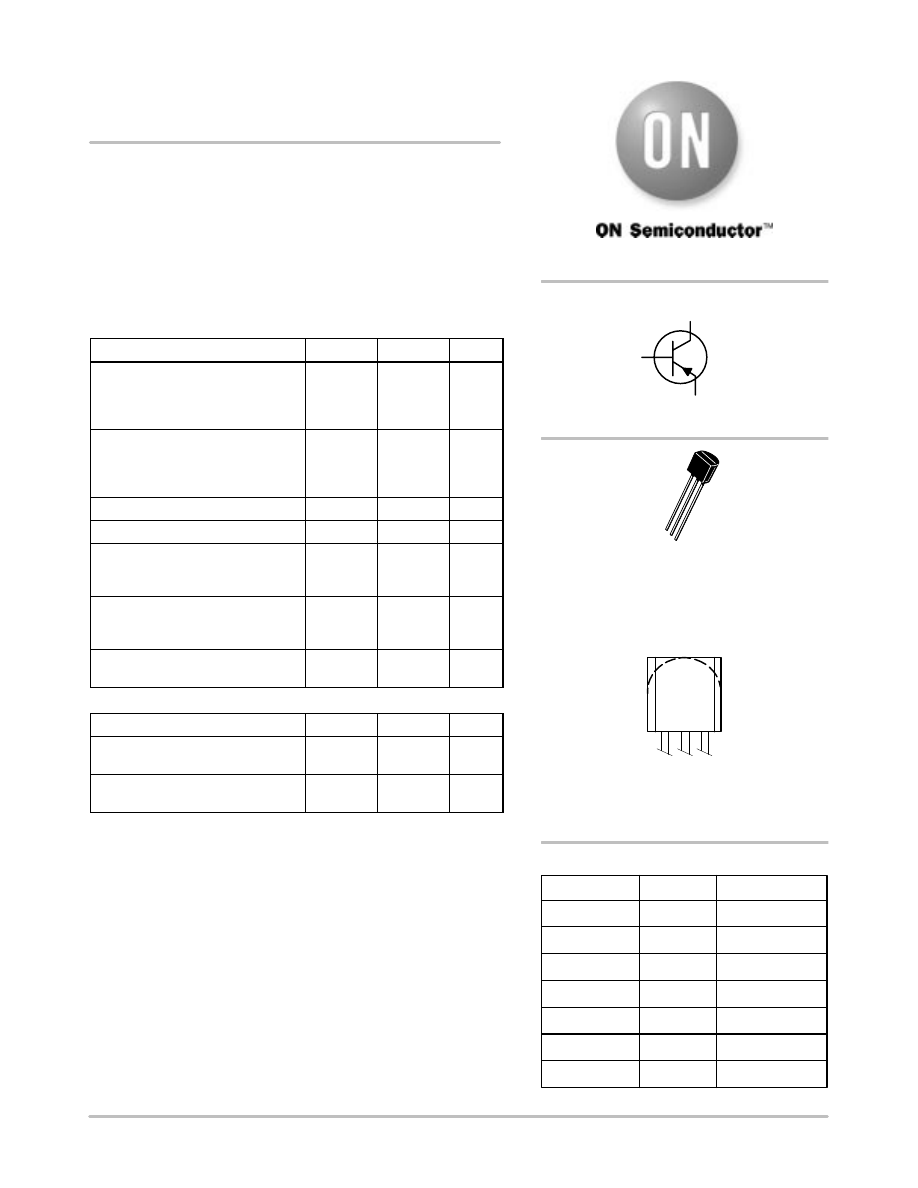

BC212, BC212B, BC213,

BC214

Amplifier Transistors

PNP Silicon

MAXIMUM RATINGS

Rating

Symbol

Value

Unit

Collector-Emitter Voltage

BC212
BC213
BC214

V

CEO

-50
-30
-30

Vdc

Collector-Base Voltage

BC212
BC213
BC214

V

CBO

-60
-45
-45

Vdc

Emitter-Base Voltage

V

EBO

-5.0

Vdc

Collector Current - Continuous

I

C

-100

mAdc

Total Device Dissipation

@ T

A

 = 25

C

Derate above 25

C

P

D

350

2.8

mW

mW/

C

Total Device Dissipation

@ T

C

 = 25

C

Derate above 25

C

P

D

1.0
8.0

Watts

mW/

C

Operating and Storage Junction

Temperature Range

T

J

, T

stg

-55 to

+150

C

THERMAL CHARACTERISTICS

Characteristic

Symbol

Max

Unit

Thermal Resistance,

Junction to Ambient

R

Θ

JA

357

C/W

Thermal Resistance,

Junction to Case

R

Θ

JC

125

C/W

Device

Package

Shipping

ORDERING INFORMATION

BC212

TO-92

http://onsemi.com

TO-92

CASE 29

STYLE 17

5000 Units/Box

3

2

1

BC212B

TO-92

5000 Units/Box

BC212BRL1

TO-92

2000/Tape & Reel

BC212BZL1

TO-92

2000/Ammo Pack

BC213

TO-92

5000 Units/Box

BC214

TO-92

5000 Units/Box

BC214RL1

TO-92

2000/Tape & Reel

COLLECTOR

1

2

BASE

3

EMITTER

BC21xx = Specific Device Code
xx

= 2, 2B, 3 or 4

Y

= Year

WW

= Work Week

MARKING DIAGRAMS

BC2
1xx
YWW

background image

BC212, BC212B, BC213, BC214

http://onsemi.com

2

ELECTRICAL CHARACTERISTICS

(T

A

 = 25

C unless otherwise noted)

Characteristic

Symbol

Min

Typ

Max

Unit

Collector-Emitter Breakdown Voltage

BC212

(I

C

 = -2.0 mAdc, I

B

 = 0)

BC213
BC214

V

(BR)CEO

-50
-30
-30

-
-
-

-
-
-

Vdc

Collector-Base Breakdown Voltage

BC212

(I

C

 = -10



A, I

E

 = 0)

BC213
BC214

V

(BR)CBO

-60
-45
-45

-
-
-

-
-
-

Vdc

Emitter-Base Breakdown Voltage

BC212

(I

E

 = -10



Adc, I

C

 = 0)

BC213
BC214

V

(BR)EBO

-5
-5
-5

-
-
-

-
-
-

Vdc

Collector-Emitter Leakage Current

BC212

(V

CB

 = -30 V)

BC213
BC214

I

CBO

-
-
-

-
-
-

-15
-15
-15

nAdc

Emitter-Base Leakage Current

BC212

(V

EB

 = -4.0 V, I

C

 = 0)

BC213
BC214

I

EBO

-
-
-

-
-
-

-15
-15
-15

nAdc

ON CHARACTERISTICS

DC Current Gain

(I

C

 = -10

Adc, V

CE

 = -5.0 Vdc)

BC212
BC213
BC214

(I

C

 = -2.0 mAdc, V

CE

 = -5.0 Vdc)

BC212
BC213
BC214

(I

C

 = -100 mAdc, V

CE

 = -5.0 Vdc) (Note 1.)

BC212, BC214
BC213

h

FE

40
40

100

60
80

140

-
-

-
-
-

-
-
-

120
140

-
-
-

-
-

600

-
-

-

Collector-Emitter Saturation Voltage

(I

C

 = -10 mAdc, I

B

 = -0.5 mAdc)

(I

C

 = -100 mAdc, I

B

 = -5.0 mAdc) (Note 1.)

V

CE(sat)

-
-

-0.10
-0.25

-

-0.6

Vdc

Base-Emitter Saturation Voltage

(I

C

 = -100 mAdc, I

B

 = -5.0 mAdc)

V

BE(sat)

-

-1.0

-1.4

Vdc

Base-Emitter On Voltage

(I

C

 = -2.0 mAdc, V

CE

 = -5.0 Vdc)

V

BE(on)

-0.6

-0.62

-0.72

Vdc

DYNAMIC CHARACTERISTICS

Current-Gain - Bandwidth Product

(I

C

 = -10 mAdc, V

CE

 = -5.0 Vdc, f = 100 MHz)

BC212
BC214
BC213

f

T

-
-
-

280
320
360

-
-
-

MHz

Common-Base Output Capacitance

(V

CB

 = -10 Vdc, I

C

 = 0, f = 1.0 MHz)

C

ob

-

-

6.0

pF

Noise Figure

(I

C

 = -0.2 mAdc, V

CE

 = -5.0 Vdc,

R

S

 = 2.0 k

 , f = 1.0 kHz)

BC214

(I

C

 = -0.2 mAdc, V

CE

 = -5.0 Vdc,

R

S

 = 2.0 k

, f = 1.0 kHz, f = 200 Hz)

BC212, BC213

NF

-

-

-

-

2

10

dB

Small-Signal Current Gain

(I

C

 = -2.0 mAdc, V

CE

 = -5.0 Vdc, f = 1.0 kHz)

BC212
BC213
BC214
BC212B

h

fe

60
80

140
200

-
-
-
-

-
-
-

400

-

1. Pulse Test: Tp 300 s, Duty Cycle 2.0%.

background image

BC212, BC212B, BC213, BC214

http://onsemi.com

3

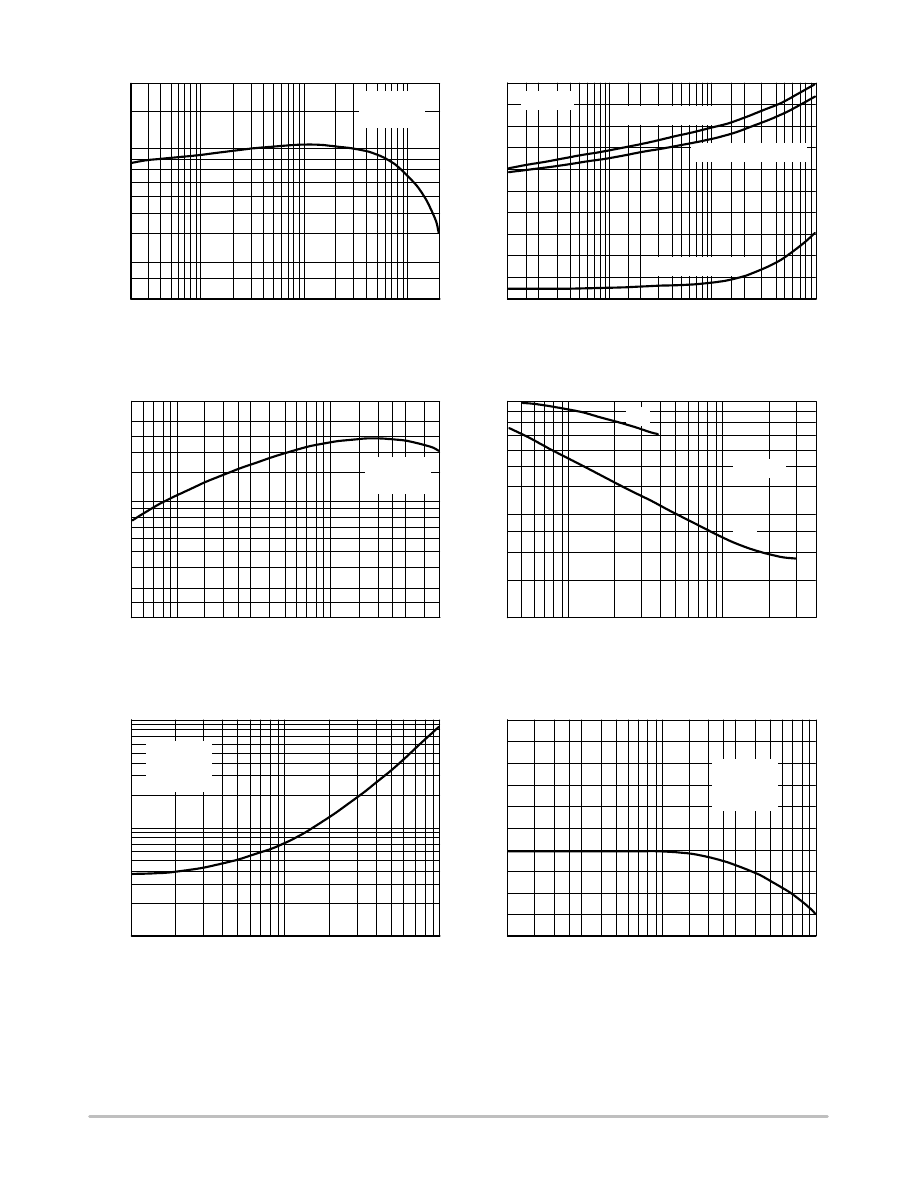

2.0

1.5

1.0

0.2

0.3

0.5

0.7

-200

-0.2

-0.5 -1.0 -2.0

-5.0 -10 -20

-50 -100

I

C

, COLLECTOR CURRENT (mAdc)

Figure 1. Normalized DC Current Gain

h FE

, NORMALIZED DC CURRENT

 GAIN

V

CE

 = -10 V

T

A

 = 25

C

-1.0
-0.9
-0.8
-0.7
-0.6
-0.5
-0.4
-0.3
-0.2
-0.1

0

-0.1

I

C

, COLLECTOR CURRENT (mAdc)

Figure 2. Saturation and On Voltages

V,

 VOL

TAGE (VOL

TS)

T

A

 = 25

C

V

BE(sat)

 @ I

C

/I

B

 = 10

V

BE(on)

 @ V

CE

 = -10 V

V

CE(sat)

 @ I

C

/I

B

 = 10

400

20

30

40

60

80

100

200

300

I

C

, COLLECTOR CURRENT (mAdc)

Figure 3. Current-Gain Bandwidth Product

f T

, CURRENT-GAIN BANDWIDTH PRODUCT

 (MHz)

C, CAP

ACIT

ANCE (pF)

10

1.0

2.0

3.0

5.0

7.0

-0.4

V

R

, REVERSE VOLTAGE (VOLTS)

Figure 4. Capacitances

T

A

 = 25

C

C

ib

C

ob

r b

, BASE SPREADING RESIST

ANCE (OHMS)

150

140

130

120

110

100

I

C

, COLLECTOR CURRENT (mAdc)

Figure 5. Output Admittance

-0.2

-0.5 -1.0 -2.0

-5.0 -10

-20

-50 -100

V

CE

 = -10 V

T

A

 = 25

C

-0.5

-1.0

-2.0 -3.0

-5.0

-10

-20 -30

-50

-0.6 -1.0

-2.0

-4.0 -6.0

-10

-20 -30 -40

1.0

I

C

, COLLECTOR CURRENT (mAdc)

Figure 6. Base Spreading Resistance

V

CE

 = -10 V

f = 1.0 kHz

T

A

 = 25

C

-0.1

-0.2 -0.3 -0.5

-1.0

-2.0 -3.0 -5.0

-10

V

CE

 = -10 V

f = 1.0 kHz

T

A

 = 25

C

-0.1

-0.2

-0.5

-1.0

-2.0

-5.0

-10

0.01

0.03

0.05

0.1

0.3

0.5

h    , OUTPUT

 ADMITT

ANCE (OHMS)

ob

150

background image

BC212, BC212B, BC213, BC214

http://onsemi.com

4

PACKAGE DIMENSIONS

TO-92 (TO-226)

CASE 29-11

ISSUE AL

NOTES:

1. DIMENSIONING AND TOLERANCING PER ANSI

Y14.5M, 1982.

2. CONTROLLING DIMENSION: INCH.

3. CONTOUR OF PACKAGE BEYOND DIMENSION R

IS UNCONTROLLED.

4. LEAD DIMENSION IS UNCONTROLLED IN P AND

BEYOND DIMENSION K MINIMUM.

R

A

P

J

L

B

K

G

H

SECTION X-X

C

V

D

N

N

X X

SEATING

PLANE

DIM

MIN

MAX

MIN

MAX

MILLIMETERS

INCHES

A

0.175

0.205

4.45

5.20

B

0.170

0.210

4.32

5.33

C

0.125

0.165

3.18

4.19

D

0.016

0.021

0.407

0.533

G

0.045

0.055

1.15

1.39

H

0.095

0.105

2.42

2.66

J

0.015

0.020

0.39

0.50

K

0.500

---

12.70

---

L

0.250

---

6.35

---

N

0.080

0.105

2.04

2.66

P

---

0.100

---

2.54

R

0.115

---

2.93

---

V

0.135

---

3.43

---

1

STYLE 17:

PIN 1. COLLECTOR

2. BASE

3. EMITTER
