2SC458, 2SC2308

Silicon NPN Epitaxial

Application

•

Low  frequency amplifier

•

Complementary pair with 2SA1029 and 2SA1030

Outline

1. Emitter
2. Collector
3. Base

TO-92 (1)

3

2

1

background image

2SC458, 2SC2308

2

Absolute Maximum Ratings (Ta = 25 °C)

Item

Symbol

2SC458

2SC2308

Unit

Collector to base voltage

V

CBO

30

55

V

Collector to emitter voltage

V

CEO

30

50

V

Emitter to base voltage

V

EBO

5

5

V

Collector current

I

C

100

100

mA

Emitter current

I

E

-100

-100

mA

Collector power dissipation

P

C

200

200

mW

Junction temperature

Tj

150

150

°

C

Storage temperature

Tstg

-55 to +150

-55 to +150

°

C

background image

2SC458, 2SC2308

3

Electrical Characteristics (Ta = 25 °C)

2SC458

2SC2308

Item

Symbol

Min

Typ

Max

Min

Typ

Max

Unit

Test conditions

Collector to base
breakdown voltage

V

(BR)CBO

30

—

—

55

—

—

V

I

C

 = 10

΅

A, I

E

 = 0

Collector to emitter
breakdown voltage

V

(BR)CEO

30

—

—

50

—

—

V

I

C

 = 1 mA, R

BE

 =

•ˆž

Emitter to base
breakdown voltage

V

(BR)EBO

5

—

—

5

—

—

V

I

E

 = 10

΅

A, I

C

 = 0

Collector cutoff current

I

CBO

—

—

0.5

—

—

0.5

΅

A

V

CB

 =18 V, I

E

 = 0

Emitter cutoff current

I

EBO

—

—

0.5

—

—

0.5

΅

A

V

EB

 = 2 V, I

C

 = 0

DC current transfer ratio h

FE

*

1

100

—

500

100

—

320

V

CE

 = 12 V, I

C

 = 2 mA

Collector to emitter
saturation voltage

V

CE(sat)

—

—

0.2

—

—

0.2

V

I

C

 = 10 mA, I

B

 = 1 mA

Base to emitter voltage

V

BE

—

0.67

0.75

—

0.67

0.75

V

V

CE

 = 12 V, I

C

 = 2 mA

Gain bandwidth product f

T

—

230

—

—

230

—

MHz

V

CE

 = 12 V, I

C

 = 2 mA

Collector output
capacitance

Cob

—

1.8

3.5

—

1.8

3.5

pF

V

CB

 = 10 V, I

E

 = 0,

f = 1 MHz

Noise figure

NF

—

4

10

—

4

10

dB

V

CE

 = 6 V, I

C

 = 0.1 mA,

f = 1 kHz, R

g

 = 500

Ω¦

Small signal input
impedance

h

ie

—

16.5

—

—

16.5

—

k

Ω¦

V

CE

 = 5V, I

C

 = 0.1mA,

f = 270 Hz

Small signal voltage
feedback ratio

h

re

—

70

—

—

70

—

×

 10

-6

Small signal current
trancefer ratio

h

fe

—

130

—

—

130

—

Small signal output
admittance

h

oe

—

11.0

—

—

11.0

—

΅

S

Note:

1. The 2SC458 and 2SC2308 are grouped by h

FE

 as follows.

B

C

D

2SC458

100 to 200

160 to 320

250 to 500

2SC2308

100 to 200

160 to 320

—

See characteristic curves of 2SC458 (LG) and 2SC2310 except for the followings.

background image

2SC458, 2SC2308

4

0

50

100

150

Ambient Temperature  Ta  (

°

C)

Collector Power Dissipation  P

C

  (mW)

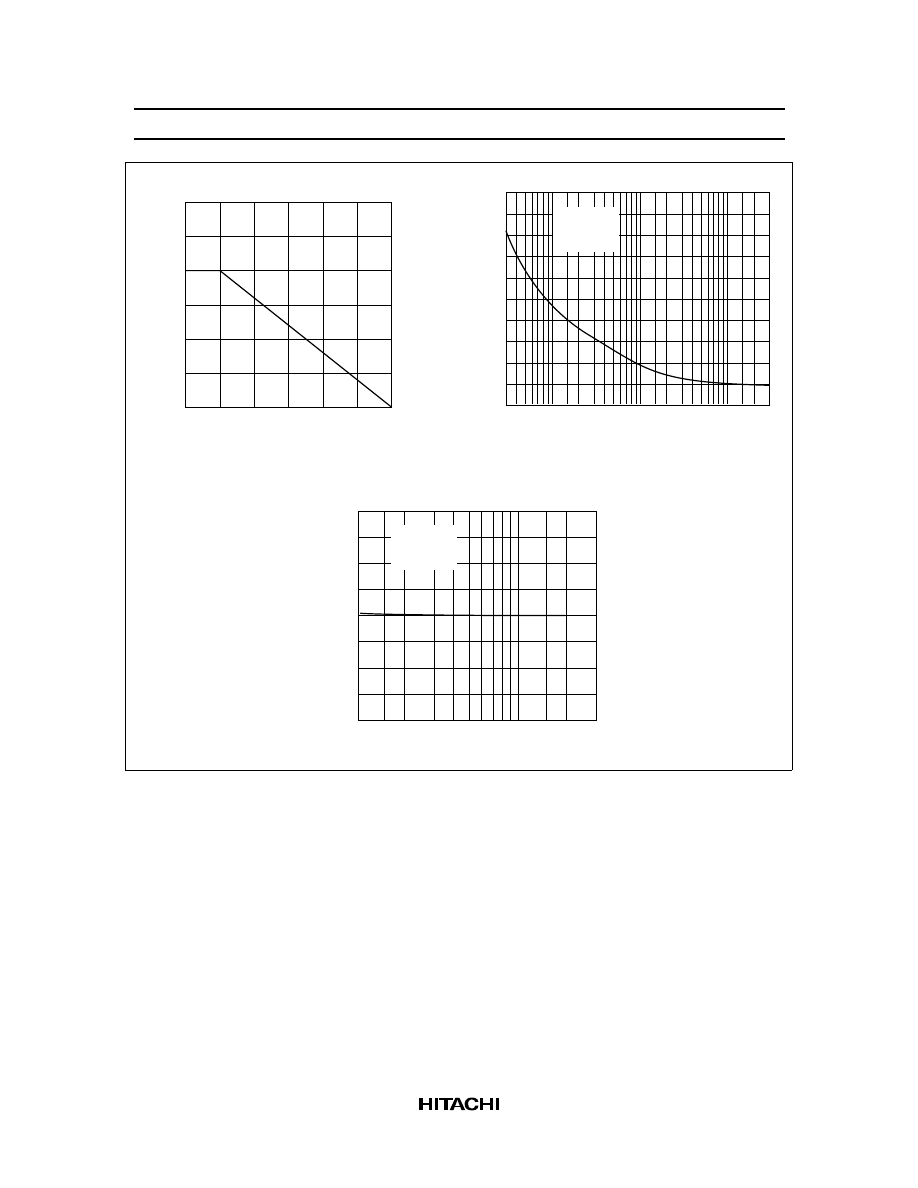

Maximum Collector Dissipation Curve

300

200

100

Noise Figure vs. Frequency

Noise Figure NF (dB)

0

100

1k

3k

300

10k

30k

30

4

8

12

16

20

Frequency  f  (Hz)

I

C

 = 0.1 mA

R

g

 = 500

Ω¦

V

CE

 = 6 V

Collector to Emitter Voltage  V

CE

  (V)

1

Noise Figure NF (dB)

Noise Figure vs. Collector to Emitter Voltage

8

6

4

2

0

30

20

10

5

2

I

C

 = 0.1 mA

R

g

 = 500

Ω¦

f = 1kHz

background image

0.60 Max

0.5

±

 0.1

4.8

±

 0.3

3.8

±

 0.3

5.0

±

 0.2

0.7

2.3 Max

12.7 Min

0.5

1.27

2.54

Hitachi Code
JEDEC
EIAJ
Weight (reference value)

TO-92 (1)
Conforms
Conforms
0.25 g

Unit: mm
