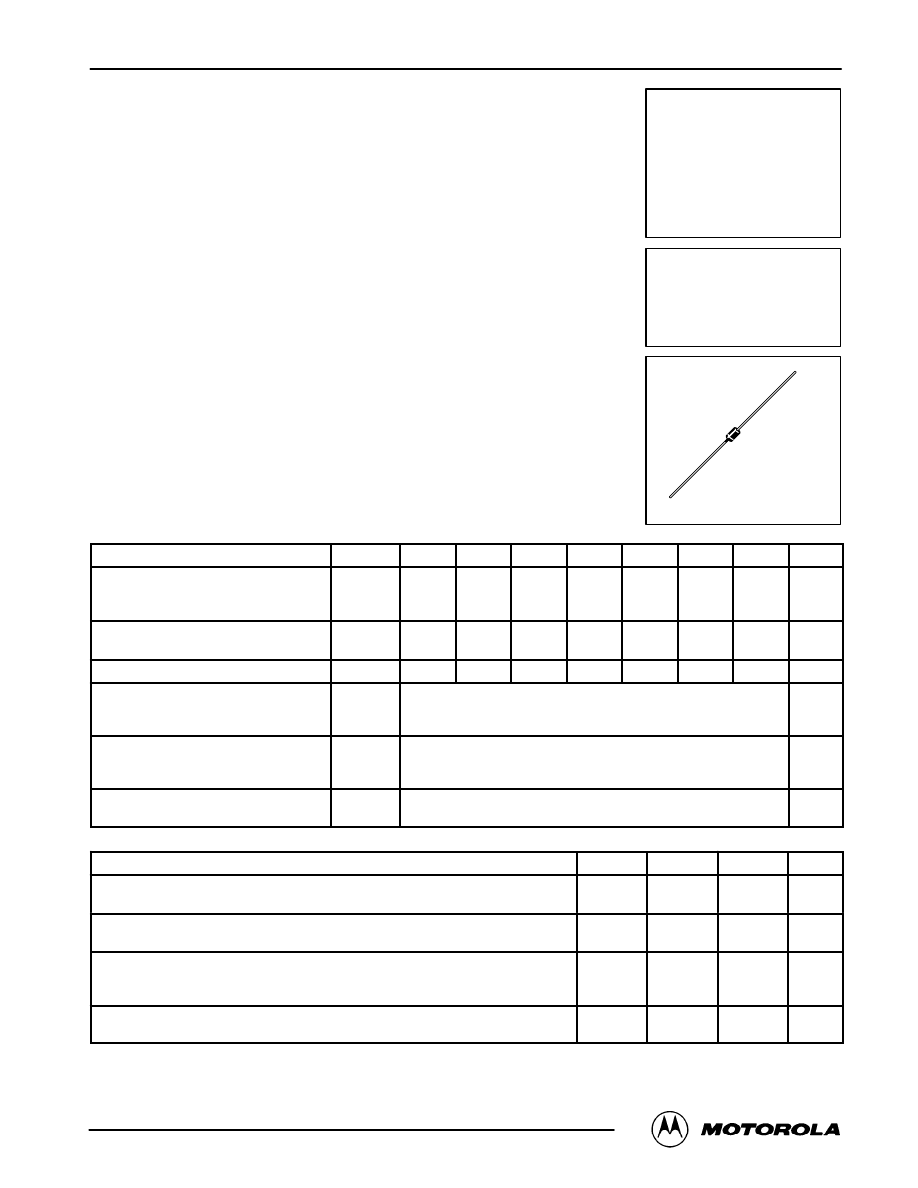

Rectifier Device Data





This data sheet provides information on subminiature size, axial lead

mounted rectifiers for general-purpose low-power applications.

Mechanical Characteristics

Case: Epoxy, Molded

Weight: 0.4 gram (approximately)

Finish: All External Surfaces Corrosion Resistant and Terminal Leads are
Readily Solderable

Lead and Mounting Surface Temperature for Soldering Purposes:
220

C Max. for 10 Seconds, 1/16

 from case

Shipped in plastic bags, 1000 per bag.

Available Tape and Reeled, 5000 per reel, by adding a RL suffix to the
part number

Polarity: Cathode Indicated by Polarity Band

Marking: 1N4001, 1N4002, 1N4003, 1N4004, 1N4005, 1N4006, 1N4007

MAXIMUM RATINGS

Rating

Symbol

1N4001

1N4002

1N4003

1N4004

1N4005

1N4006

1N4007

Unit

*Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage
DC Blocking Voltage

VRRM

VRWM

VR

50

100

200

400

600

800

1000

Volts

*Non-Repetitive Peak Reverse Voltage

(halfwave, single phase, 60 Hz)

VRSM

60

120

240

480

720

1000

1200

Volts

*RMS Reverse Voltage

VR(RMS)

35

70

140

280

420

560

700

Volts

*Average Rectified Forward Current

(single phase, resistive load,
60 Hz, see Figure 8, TA = 75

C)

IO

1.0

Amp

*Non-Repetitive Peak Surge Current

(surge applied at rated load
conditions, see Figure 2)

IFSM

30 (for 1 cycle)

Amp

Operating and Storage Junction

Temperature Range

TJ

Tstg

- 65 to +175

C

ELECTRICAL CHARACTERISTICS*

Rating

Symbol

Typ

Max

Unit

Maximum Instantaneous Forward Voltage Drop

(iF = 1.0 Amp, TJ = 25

C) Figure 1

vF

0.93

1.1

Volts

Maximum Full-Cycle Average Forward Voltage Drop

(IO = 1.0 Amp, TL = 75

C, 1 inch leads)

VF(AV)

0.8

Volts

Maximum Reverse Current (rated dc voltage)

(TJ = 25

C)

(TJ = 100

C)

IR

0.05

1.0

10
50

A

Maximum Full-Cycle Average Reverse Current

(IO = 1.0 Amp, TL = 75

C, 1 inch leads)

IR(AV)

30

A

*Indicates JEDEC Registered Data

Preferred devices are Motorola recommended choices for future use and best overall value.

 Motorola, Inc. 1996

Order this document

by 1N4001/D



SEMICONDUCTOR TECHNICAL DATA







LEAD MOUNTED

RECTIFIERS

50-1000 VOLTS

DIFFUSED JUNCTION

CASE 59-03

DO-41

1N4004 and 1N4007 are

Motorola Preferred Devices

Rev 5

background image



2

Rectifier Device Data

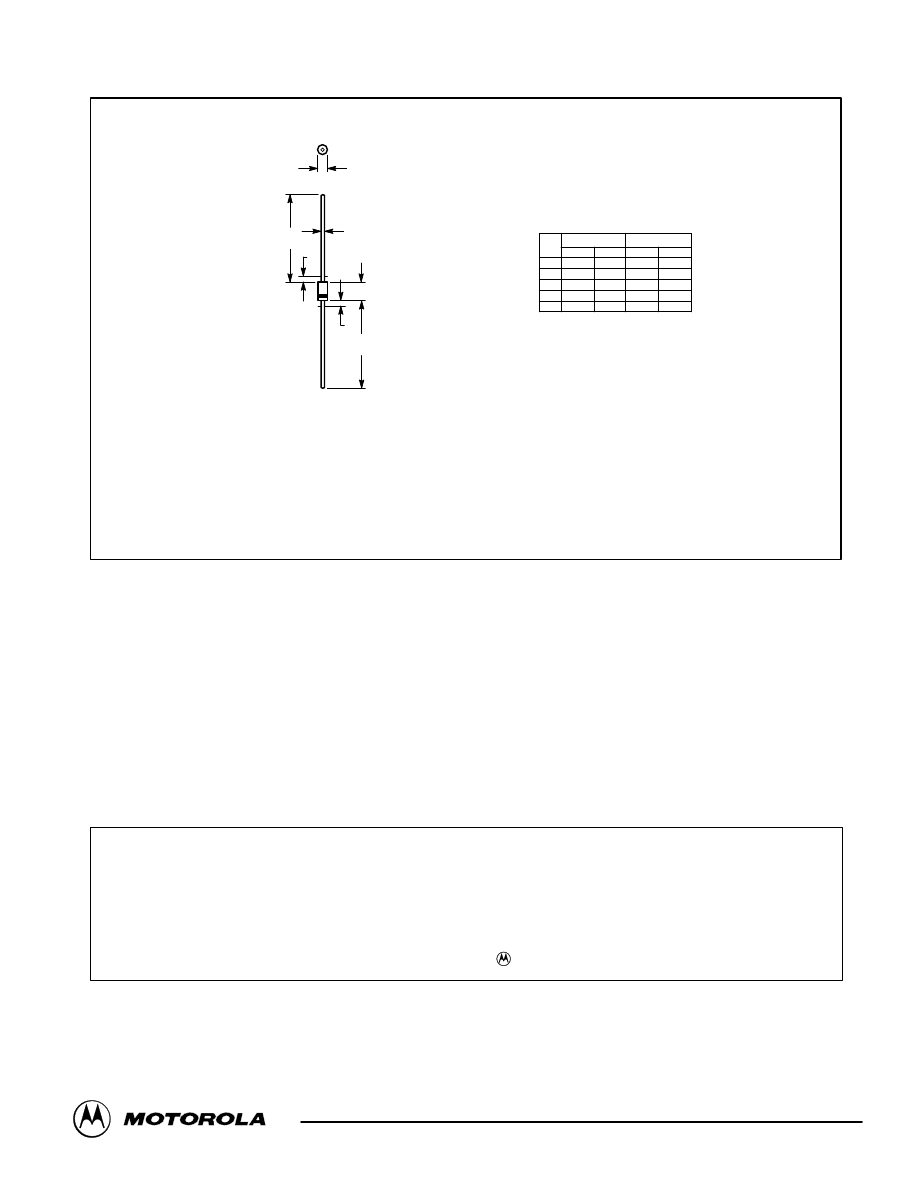

PACKAGE DIMENSIONS

CASE 59-03

(DO-41)

ISSUE M

B

D

K

K

F

F

A

DIM

MIN

MAX

MIN

MAX

INCHES

MILLIMETERS

A

4.07

5.20

0.160

0.205

B

2.04

2.71

0.080

0.107

D

0.71

0.86

0.028

0.034

F

---

1.27

---

0.050

K

27.94

---

1.100

---

NOTES:

1. ALL RULES AND NOTES ASSOCIATED WITH

JEDEC DO-41 OUTLINE SHALL APPLY.

2. POLARITY DENOTED BY CATHODE BAND.
3. LEAD DIAMETER NOT CONTROLLED WITHIN F

DIMENSION.
