BC556 / BC557 / BC558 / BC559 / BC560 —

PN

P Epit

axial Silicon

T

ra

n

sis
tor

© 2002 Fairchild Semiconductor Corporation

  www.fairchildsemi.com

BC556 / BC557 / BC558 / BC559 / BC560 Rev. 1.7

January 2016

BC556 / BC557 / BC558 / BC559 / BC560
PNP Epitaxial Silicon Transistor

Features

• Switching and Amplifier

• High-Voltage: BC556, V

CEO

= -65 V

• Low-Noise: BC559, BC560

• Complement to BC546, BC547, BC548, BC549, and BC550

Ordering Information

Part Number

Marking

Package

Packing Method

BC556ABU

BC556A

TO-92 3L

Bulk

BC556ATA

BC556A

TO-92 3L

Ammo

BC556BTA

BC556B

TO-92 3L

Ammo

BC556BTF

BC556B

TO-92 3L

Tape and Reel

BC556BTFR

BC556B

TO-92 3L

Tape and Reel

BC557ATA

BC557A

TO-92 3L

Ammo

BC557BTA

BC557B

TO-92 3L

Ammo

BC557BTF

BC557B

TO-92 3L

Tape and Reel

BC558BTA

BC558B

TO-92 3L

Ammo

BC559BTA

BC559B

TO-92 3L

Ammo

BC559CTA

BC559C

TO-92 3L

Ammo

BC560CTA

BC560C

TO-92 3L

Ammo

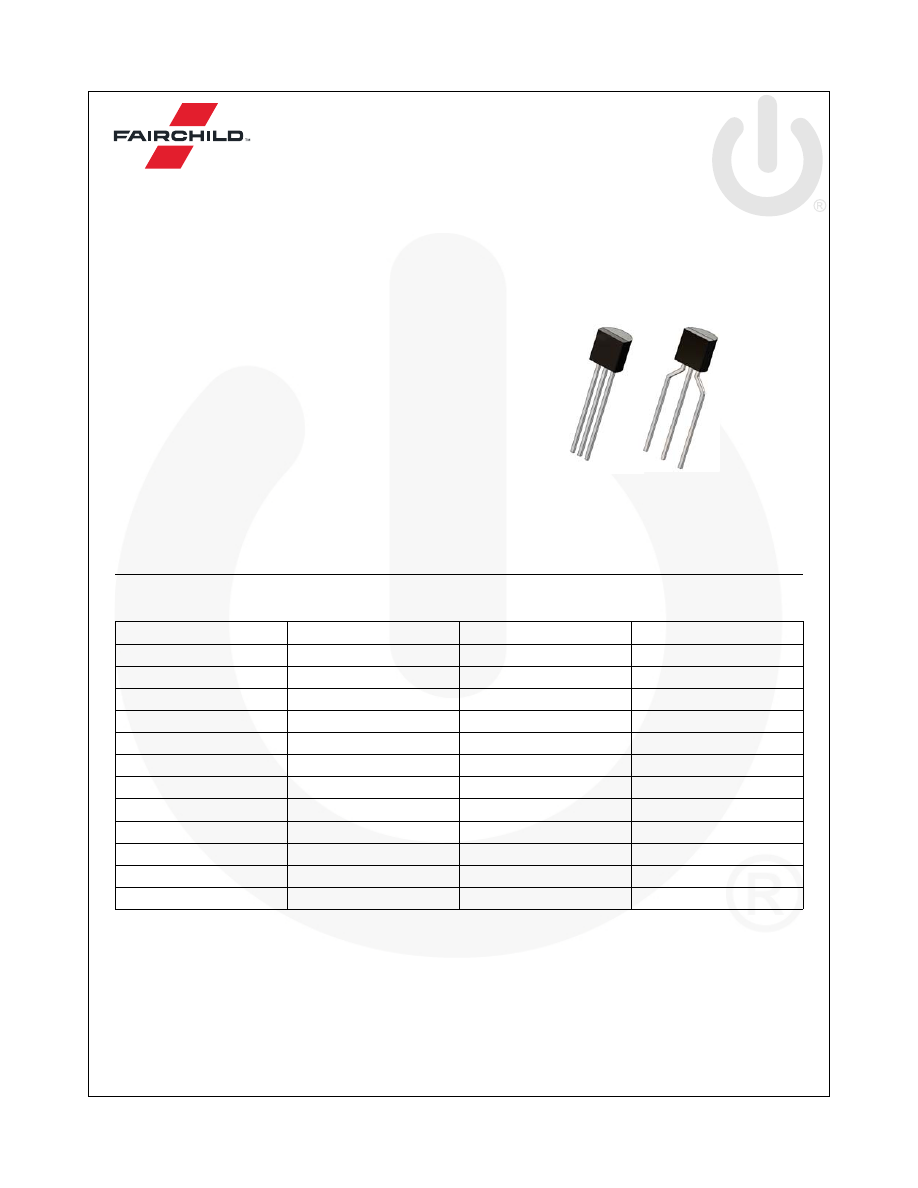

1. Collector

1 2

3

1

2

3

Straight Lead        Bent Lead

TO-92

Bulk Packing       Tape & Reel
                           Ammo Packing

2. Base
3. Emitter



background image

BC556 / BC557 / BC558 / BC559 / BC560 —

PN

P Epit

axial Silicon

T

ra

n

sis
tor

© 2002 Fairchild Semiconductor Corporation

  www.fairchildsemi.com

BC556 / BC557 / BC558 / BC559 / BC560 Rev. 1.7

Absolute Maximum Ratings

Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera-
ble above the recommended operating conditions and stressing the parts to these levels is not recommended. In addi-
tion, extended exposure to stresses above the recommended operating conditions may affect device reliability. The
absolute maximum ratings are stress ratings only. Values are at T

A

 = 25 °C unless otherwise noted.

Thermal Characteristics

(1)

Values are at T

A

 = 25 °C unless otherwise noted.

Note:

1. PCB size: FR-4, 76 mm x 114 mm x 1.57 mm (3.0 inch x 4.5 inch x 0.062 inch) with minimum land pattern size.

Symbol

Parameter

Value

Unit

V

CBO

Collector-Base Voltage

BC556

-80

V

BC557 / BC560

-50

BC558 / BC559

-30

V

CEO

Collector-Emitter Voltage

BC556

-65

V

BC557 / BC560

-45

BC558 / BC559

-30

V

EBO

Emitter-Base Voltage

-5

V

I

C

Collector Current (DC)

-100

mA

I

CP

Peak Collector Current (Pulse)

-200

mA

I

BP

Peak Base Current (Pulse)

-200

mA

T

J

Junction Temperature

150

°C

T

STG

Storage Temperature Range

-65 to +150

°C

Symbol

Parameter

Max.

Unit

P

D

Total Power Dissipation

500

mW

Derate Above 25

°C

4.0

mW/

°C

R

ΘJA

Thermal Resistance, Junction-to-Ambient

250

°C/W

background image

BC556 / BC557 / BC558 / BC559 / BC560 —

PN

P Epit

axial Silicon

T

ra

n

sis
tor

© 2002 Fairchild Semiconductor Corporation

  www.fairchildsemi.com

BC556 / BC557 / BC558 / BC559 / BC560 Rev. 1.7

Electrical Characteristics

Values are at T

A

 = 25 °C unless otherwise noted.

h

FE

Classification

Symbol

Parameter

Conditions

Min.

Typ.

Max.

Unit

I

CBO

Collector Cut-Off Current

V

CB

= -30 V, I

= 0

-15

nA

h

FE

DC Current Gain

V

CE

= -5 V, I

= -2 mA

110

800

V

CE

(sat)

Collector-Emitter Saturation
Voltage

I

= -10 mA, I

= -0.5 mA

-90

-300

mV

I

= -100 mA, I

= -5 mA

-250

-650

V

BE

(sat)

Collector-Base Saturation Voltage

I

= -10 mA, I

= -0.5 mA

-700

mV

I

= -100 mA, I

= -5 mA

-900

V

BE

(on)

Base-Emitter On Voltage

V

CE

= -5 V, I

= -2 mA

-600

-660

-750

mV

V

CE

= -5 V, I

= -10 mA

-800

f

T

Current Gain Bandwidth Product

V

CE

= -5 V, I

= -10 mA,

f = 10 MHz

150

MHz

C

ob

Output Capacitance

V

CB

= -10 V, I

= 0, f = 1 MHz

6

pF

NF

Noise
Figure

BC556 / BC557 / BC558 V

CE

= -5 V, I

= -200

μA,

f = 1 kHz, R

= 2 k

2

10

dB

BC559 / BC560

1

4

BC559

V

CE

= -5 V, I

= -200

μA,

R

= 2 k

Ω, f = 30 to 15000 MHz

1.2

4.0

BC560

1.2

2.0

Classification

A

B

C

h

FE

110 ~ 220

200 ~ 450

420 ~ 800

background image

BC556 / BC557 / BC558 / BC559 / BC560 —

PN

P Epit

axial Silicon

T

ra

n

sis
tor

© 2002 Fairchild Semiconductor Corporation

  www.fairchildsemi.com

BC556 / BC557 / BC558 / BC559 / BC560 Rev. 1.7

Typical Performance Characteristics

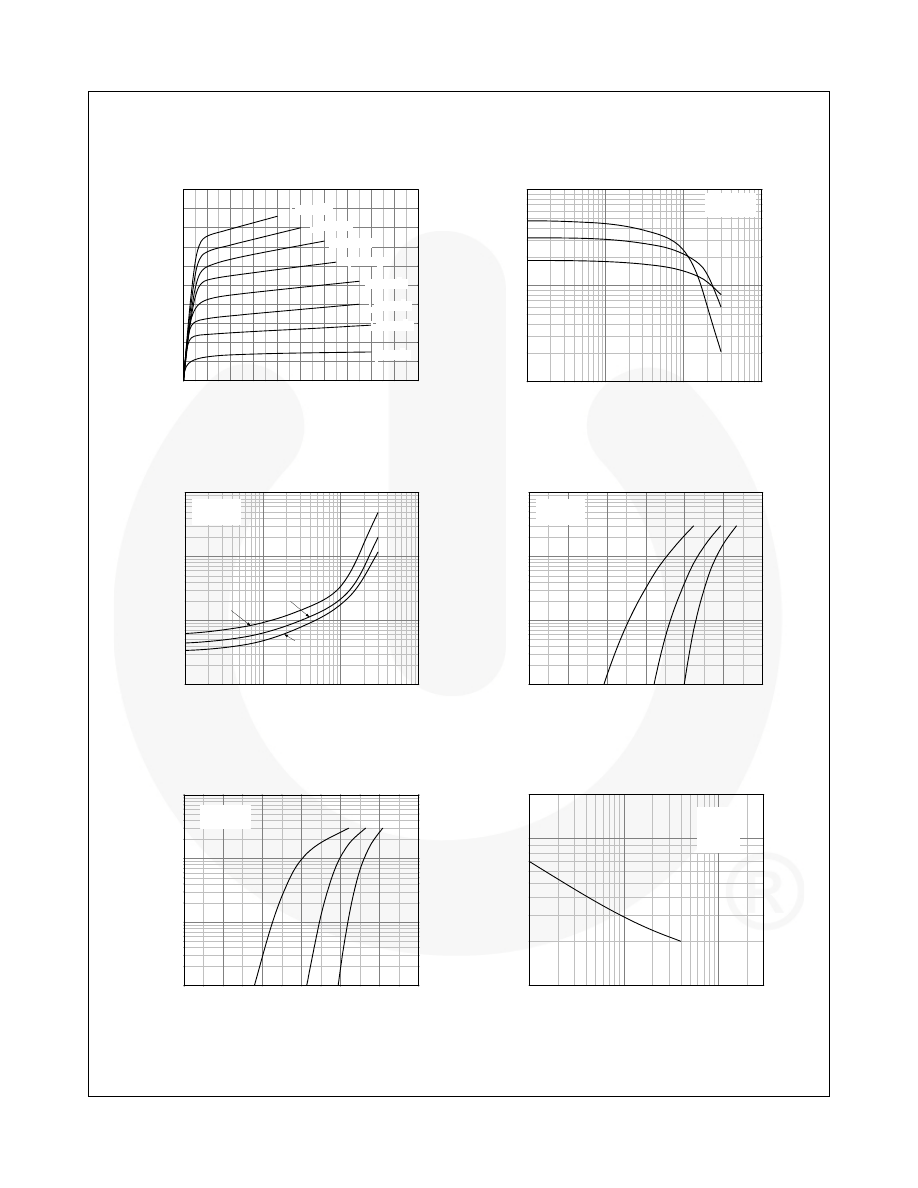

Figure 1. Static Characteristic

Figure 2. DC Current Gain

Figure 3. Collector-Emitter Saturation Voltage

Figure 4. Base-Emitter Saturation Voltage

Figure 5. Base-Emitter On Voltage

Figure 6. Collector Output Capacitance

-2

-4

-6

-8

-10

-12

-14

-16

-18

-20

-0

-5

-10

-15

-20

-25

-30

-35

-40

-45

-50

I

B

 = -50

μ

A

I

B

 = -100

μ

A

I

B

 = -150

μ

A

I

B

 = -200

μ

A

I

B

 = -250

μ

A

I

B

 = -300

μ

A

I

B

 = -350

μ

A

I

B

 = -400

μ

A





I

C

[m

A

],

 CO

LL

ECT

O

R CURRENT

V

CE

[V], COLLECTOR-EMITTER VOLTAGE

-1

-10

-100

-1000

10

100

1000

T

A

 = -55

o

C

T

A

 = 25

o

C

V

CE

 = -5V





h

FE

, DC CURR

E

N

GA

IN

I

C

 [mA], COLLECTOR CURRENT

T

A

 = 150

o

C

-1

-10

-100

-1000

-0.01

-0.1

-1

-10

T

A

 = -55

o

C

T

A

 = 25

o

C

I

C

 = 20 I

B





V

CE

(s

at)

 [V

], CO

L

L

E

C

T

O

R

-E

M

IT

T

E

SA

T

U

R

A

TI

O

N

 VO

L

T

AG

E

I

C

 [mA], COLLECTOR CURRENT

T

A

 = 150

o

C

-1

-10

-100

-1000

-0.0

-0.2

-0.4

-0.6

-0.8

-1.0

-1.2

T

A

 = -55

o

C

T

A

 = 25

o

C

I

C

 = 20 I

B





V

BE

(sat) [V], BASE-EMITTER SATURATION VOLTAGE

I

C

 [

m

A

], COLLECTOR CUR

RE

N

T

T

A

 = 150

o

C

-10

-100

-1000

-0.0

-0.2

-0.4

-0.6

-0.8

-1.0

-1.2

T

A

 = -55

o

C

T

A

 = 25

o

C

V

CE

 = -5V





V

BE

(on) [V], BASE-EMITTER ON VOLTAGE

I

[m

A

], CO

LL

E

C

T

O

R

 CU

RR

E

N

T

T

A

 = 150

o

C

-1

-10

-100

1

10

f=1MHz

I

E

 = 0





C

ob

(pF

), CA

PACI

T

AN

CE

V

CB

[V], COLLECTOR-BASE VOLTAGE

background image

BC556 / BC557 / BC558 / BC559 / BC560 —

PN

P Epit

axial Silicon

T

ra

n

sis
tor

© 2002 Fairchild Semiconductor Corporation

  www.fairchildsemi.com

BC556 / BC557 / BC558 / BC559 / BC560 Rev. 1.7

Typical Performance Characteristics

(Continued)

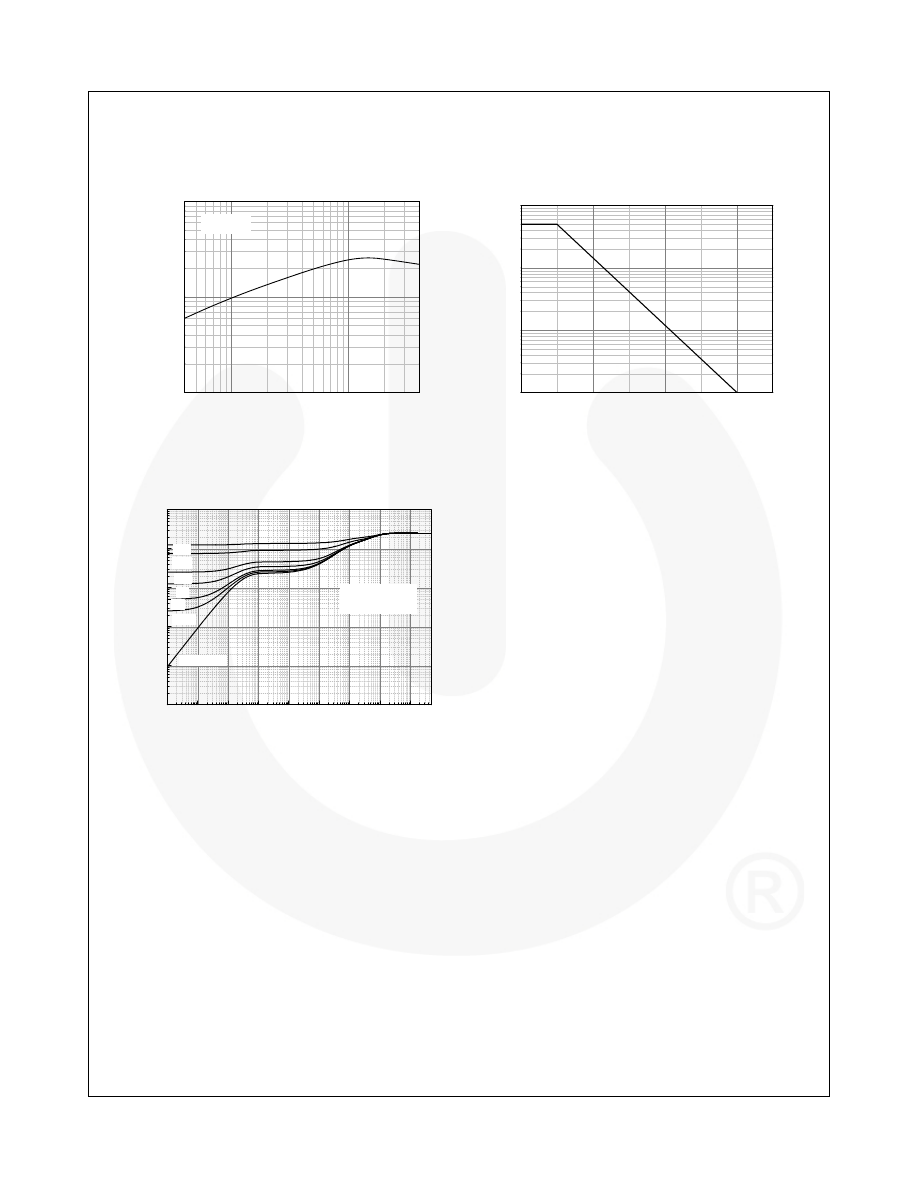

Figure 7. Current Gain Bandwidth Product

Figure 8. Power Deration

Figure 9. Normalized Transient Thermal Resistance

-1

-10

10

100

1000

V

CE

 = -5V





f

T

[MHz],

CURRE

NT GAI

N

-BA

NDWID

TH P

R

ODUCT

I

C

[mA], COLLECTOR CURRENT

0

50

100

150

1

10

100

1000



POWER

 D

ISSIPATIO

N, P

D

 [m

W]

AMBIENT TEMPERATURE, [

o

C]

1E-5

1E-4

1E-3

0.01

0.1

1

10

100

1000

0.01

0.1

1

10

100

1000

50%

r(t

),

 Normalized

 T

ransient

 T

hermal Resist

ance

t1, time(sec)

Single Pulse

30%

10%

5%

2%

D=1%

Rthja(t)=r(t)*Rthja

Rthja=250

o

C/W

background image

BC556 / BC557 / BC558 / BC559 / BC560 —

PN

P Epit

axial Silicon

T

ra

n

sis
tor

© 2002 Fairchild Semiconductor Corporation

  www.fairchildsemi.com

BC556 / BC557 / BC558 / BC559 / BC560 Rev. 1.7

Physical Dimensions

Figure 10. 3-LEAD, TO92, JEDEC TO-92 COMPLIANT STRAIGHT LEAD CONFIGURATION, BULK

background image

BC556 / BC557 / BC558 / BC559 / BC560 —

PN

P Epit

axial Silicon

T

ra

n

sis
tor

© 2002 Fairchild Semiconductor Corporation

  www.fairchildsemi.com

BC556 / BC557 / BC558 / BC559 / BC560 Rev. 1.7

Physical Dimensions

(Continued)

Figure 11. 3-LEAD, TO92, MOLDED 0.200 IN LINE SPACING LEAD FORM, AMMO, TAPE AND REEL

background image

© Fairchild Semiconductor Corporation



www.fairchildsemi.com

TRADEMARKS
The following includes registered and unregistered trademarks and service marks, owned by Fairchild Semiconductor and/or its global subsidiaries, and is not
intended to be an exhaustive list of all such trademarks.

AccuPower

¥

AttitudeEngine™

Awinda

®

AX-CAP

®

*

BitSiC

¥

Build it Now

¥

CorePLUS

¥

CorePOWER

¥

CROSSVOLT ¥
CTL

¥

Current Transfer Logic

¥

DEUXPEED

®

Dual Cool™
EcoSPARK

®

EfficientMax

¥

ESBC

¥

Fairchild

®

Fairchild Semiconductor

®

FACT Quiet Series

¥

FACT

®

FastvCore

¥

FETBench

¥

FPS

¥

F-PFS

¥

FRFET

®

Global Power Resource

SM

GreenBridge

¥

Green FPS

¥

Green FPS

¥ e-Series ¥

G

max ¥

GTO

¥

IntelliMAX

¥

ISOPLANAR

¥

Making Small Speakers Sound Louder

and Better™

MegaBuck

¥

MICROCOUPLER

¥

MicroFET

¥

MicroPak

¥

MicroPak2

¥

MillerDrive

¥

MotionMax

¥

MotionGrid

®

MTi

®

MTx

®

MVN

®

mWSaver

®

OptoHiT

¥

OPTOLOGIC

®

OPTOPLANAR

®

®

Power Supply WebDesigner

¥

PowerTrench

®

PowerXS™
Programmable Active Droop

¥

QFET

®

QS

¥

Quiet Series

¥

RapidConfigure

¥

¥

Saving our world, 1mW/W/kW at a time™
SignalWise

¥

SmartMax

¥

SMART START

¥

Solutions for Your Success

¥

SPM

®

STEALTH

¥

SuperFET

®

SuperSOT

¥-3

SuperSOT

¥-6

SuperSOT

¥-8

SupreMOS

®

SyncFET

¥

Sync-Lock™

®*

TinyBoost

®

TinyBuck

®

TinyCalc

¥

TinyLogic

®

TINYOPTO

¥

TinyPower

¥

TinyPWM

¥

TinyWire

¥

TranSiC

¥

TriFault Detect

¥

TRUECURRENT

®

*

PSerDes ¥

UHC

®

Ultra FRFET

¥

UniFET

¥

VCX

¥

VisualMax

¥

VoltagePlus

¥

XS™

Xsens™

௝•º

®

* Trademarks of System General Corporation, used under license by Fairchild Semiconductor.

DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE
RELIABILITY, FUNCTION, OR DESIGN. T

O OBTAIN THE LATEST, MOST UP-TO-DATE DATASHEET AND PRODUCT INFORMATION, VISIT OUR

WEBSITE AT

HTTP://WWW.FAIRCHILDSEMI.COM.

FAIRCHILD DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF

ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF
OTHERS. THESE SPECIFICATIONS DO NOT EXPAND THE TERMS OF FAIRCHILD’S WORLDWIDE TERMS AND CONDITIONS, SPECIFICALLY THE
WARRANTY THEREIN, WHICH COVERS THESE PRODUCTS.

AUTHORIZED USE
Unless otherwise specified in this data sheet, this product is a standard commercial product and is not intended for use in applications that require extraordinary
levels of quality and reliability. This product may not be used in the following applications, unless specifically approved in writing by a Fairchild officer: (1) automotive
or other transportation, (2) military/aerospace, (3) any safety critical application - including life critical medical equipment - where the failure of the Fairchild product
reasonably would be expected to result in personal injury, death or property damage. Customer’s use of this product is subject to agreement of this Authorized Use
policy. In the event of an unauthorized use of Fairchild’s product, Fairchild accepts no liability in the event of product failure. In other respects, this product shall be
subject to Fairchild’s Worldwide Terms and Conditions of Sale, unless a separate agreement has been signed by both Parties.

ANTI-COUNTERFEITING POLICY
Fairchild Semiconductor Corporation's Anti-Counterfeiting Policy. Fairchild's Anti-Counterfeiting Policy is also stated on our external website, www.fairchildsemi.com,
under Terms of Use

Counterfeiting of semiconductor parts is a growing problem in the industry. All manufacturers of semiconductor products are experiencing counterfeiting of their
parts. Customers who inadvertently purchase counterfeit parts experience many problems such as loss of brand reputation, substandard performance, failed
applications, and increased cost of production and manufacturing delays. Fairchild is taking strong measures to protect ourselves and our customers from the
proliferation of counterfeit parts. Fairchild strongly encourages customers to purchase Fairchild parts either directly from Fairchild or from Authorized Fairchild
Distributors who are listed by country on our web page cited above. Products customers buy either from Fairchild directly or from Authorized Fairchild Distributors
are genuine parts, have full traceability, meet Fairchild's quality standards for handling and storage and provide access to Fairchild's full range of up-to-date technical
and product information. Fairchild and our Authorized Distributors will stand behind all warranties and will appropriately address any warranty issues that may arise.
Fairchild will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. Fairchild is committed to combat this global
problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors.

PRODUCT STATUS DEFINITIONS
Definition of Terms

Datasheet Identification

Product Status

Definition

Advance Information

Formative / In Design

Datasheet contains the design specifications for product development. Specifications may change
in any manner without notice.

Preliminary First

Production

Datasheet contains preliminary data; supplementary data will be published at a later date. Fairchild
Semiconductor reserves the right to make changes at any time without notice to improve design.

No Identification Needed

Full Production

Datasheet contains final specifications. Fairchild Semiconductor reserves the right to make
changes at any time without notice to improve the design.

Obsolete

Not In Production

Datasheet contains specifications on a product that is discontinued by Fairchild Semiconductor.
The datasheet is for reference information only.

Rev. I77



®


powered by phppowered by MySQLPOWERED BY APACHEPOWERED BY CentOS© 2004 - 2017Información LegalPrensa
